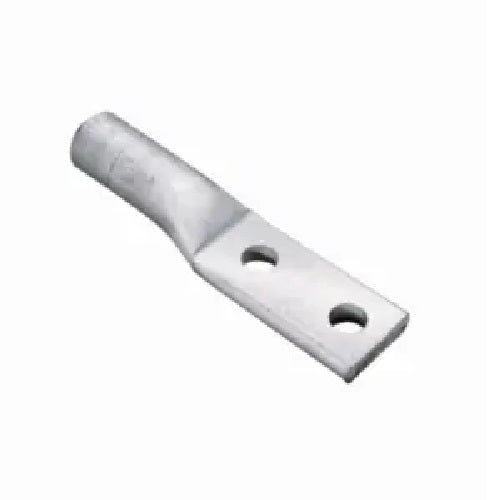

Burndy YA2CA9DT 2 AWG 1/2" Stud 3/4" Stud 2 Hole Short Barrel Aluminum Terminal Lug

Also Known as :

Burndy Connector, Aluminum Terminal Lug, Power Connectors, Burndy Aluminum LUG, Terminal Lug, YA2CA9DT.

Description :

Aluminum Compression Lug, 2 Hole w/o Inspection Window, 2 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Dipped Tin Plated.

Conductor:

• AL Str Size: 2 AWG
• AL Str Size Range: 2 AWG
• Copper DLO Size Range: N/A
• Copper Str Size: 2 AWG
• Wire Size: 2 AWG

Certifications and Compliance:

• CSA Approved: Yes
• ETL: No
• UL Recognized: No
• cULus: No
• Industry Standard(s): UL 486A-486B
• Standards: Industry Standards Met: UL 486A-486B
• Standards: RoHS Compliance Status: CM
• UL Listed: Yes

Specification :

• Conductor AWG: 2
• Stud Size: 1/2
• Color Code:  Pink
• Die Index: 348
• EU RoHS Indicator: Yes
• Finish Type: Tin-Plated
• Material: Aluminum
• Number of Holes: 2
• Tongue Type: Standard
• Plated: Y
• Plating Type:  Tin - Electro Plated
• Dimension (B): 1.12 inches
• Dimension (Bolt Hole Size): 0.52 inches
• Dimension (D): 3.11 inches
• Dimension (Hole Size): 0.56 inches
• Dimension (Length Overall): 4.73 inches
• Dimension (N): 0.63 inches
• Dimension (Outside Diameter): 0.53 inches
• Dimension (Pad Width): 0.88 inches
• Dimension (Strip Length): 1-1/8 inches
• Dimension (Z): 0.73 inches
• Physical Attribute: Straight
• Voltage Rating: 35 kV
• Part Number: YA2CA9DT
