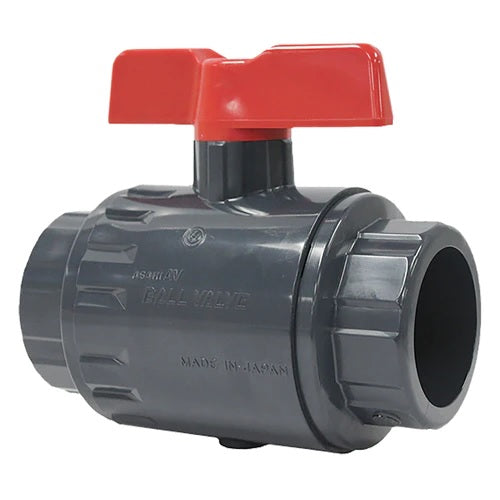

1" Type-27 Socket Connection Double EPDM O-Rings Compact Ball Valve 161070010

Product Information

Specification

Size	1"
Type of product	Compact Ball Valve
Material	PVC
Connection Type	Socket
Ball Material	PVC
Body Material	PVC
O-Ring Material	EPDM
Pressure Rating	150 psi @ 70°F
Seal Material	PTFE
Part Number	161070010

1" Type-27 Socket Connection Double EPDM O-Rings Compact Ball Valve 161070010

Description

Omni Type-27 ball valve features a rugged, injection-molded, one-piece body with a single-threaded and sealed end carrier and is available in PVC and CPVC with socket or threaded end connections in 3/8" - 2" sizes. Double stem EPDM O-ring seals provide added leak protection and the smooth ergonomic handle offers single open-shut indication. A molded ISO top flange for actuation mounting can be factory-added to the Omni Type-27. The Omni Type-27 PVC ball valve is NSF-61 compliant for use in drinking water applications.

Features

• Available in PVC and CPVC
• 2-way blocking valve
• Compact, low profile
• Unibody sealed carrier construction
• 2-stem O-rings
• PTFE seats with elastomeric backing
• Ergonomic handle design
• Full vacuum service rating
• Full port opening
• Accepts molded ISO top flange for acutation mounting
• PVC is NSF-61 Certified
• 150 psi @ 70&S176F

The Omni is ideal for the following applications:

• Water treatment
• Landfills
• Aquariums
• Chemical processing
• Power plants
• Swimming pools
• Water features and fountains
