Product Information
Specification
| Size | 1" |
| Type of product | Ball Valve |
| Material | PTFE |
| Connection Type | Female NPT |
| Part Number |
BV-1616-P
|

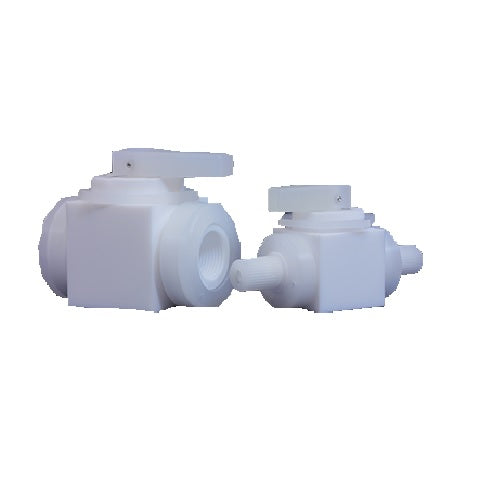

1" PTFE Construction Female NPT Connection Ball Valve BV-1616-P
Description
IPolymer ball valve features an all PTFE wetted surface design with a manual lever and quarter turn positive stops. The design is ideally suited for harsh chemical and corrosive media environments. The body, stem, ball and ports are all constructed from PTFE as well. For standard applications, external non-wetted components are constructed from natural PVDF and polypropylene.
Features
• PTFE construction for media wetted surfaces
• Reliable low torque manual operation
• Quarter turn withpositive stops
• All models can be panel mounted
• All models can be used in high ambient temperature environments
• Media operating pressure = 120 psi max / 25 in Hg Vacuum
• Media operating temperature = 32° F min / 320° Fmax
