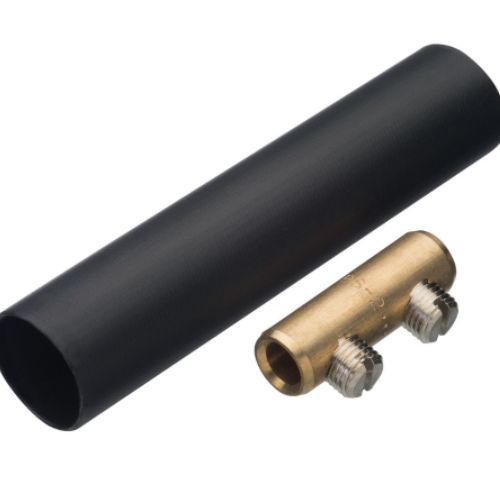

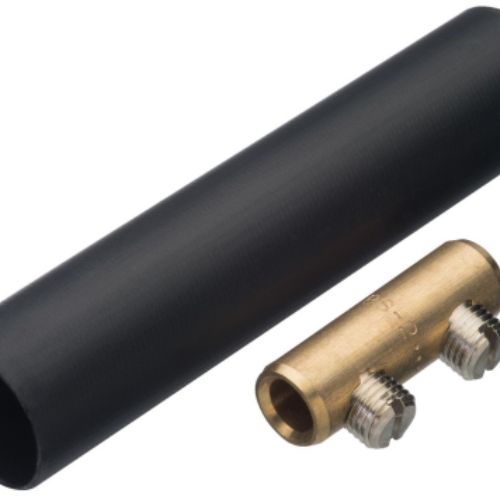

8-2 AWG Thermo-Shrink Copper Butt Splice Kit 46-405

Product Information

Specification

8-2 AWG Thermo-Shrink Copper Butt Splice Kit

Description:

The Thermo-Shrink Underground Feeder (UF) Stretcher Kit provides a reliable and efficient solution for repairing damaged sections of 600V UF cable ranging from 14 to 8 AWG. Specifically designed for situations where a section of cable has been cut or destroyed—such as by a trencher—this kit restores in-line cable segments from 7 to 10 inches in length.

Each kit includes UV-resistant, heavy-wall heat shrink tubing lined with adhesive to create a moisture-proof, abrasion-resistant seal. The included four-position, elongated set screw barrel connector ensures strong and secure conductor engagement for long-lasting performance in harsh environments.

Engineered for quick installation with minimal tools, these kits are suitable for direct burial and submersible applications, including underground feeder splices and irrigation system repairs. The heat-activated seal delivers superior moisture protection and durability in outdoor and below-grade conditions.

Features:

• Repairs damaged UF cable segments ranging from 7" to 10" in length
• Heavy-wall, adhesive-lined tubing provides an effective moisture barrier and excellent abrasion resistance
• Heat-activated seal ensures long-lasting protection against moisture ingress
• direct burial and submersible applications, including irrigation and underground cable splicing
• Quick and easy installation with secure, elongated set screw connector
• Compatible with 14/3 (with or without ground) to 8/3 (without ground) UF cables
• UV-resistant outer tubing for added protection in outdoor environments
• Electrical rating: 600V max, 105°C
• Compliance: Meets 2002 NEC Code 110-14(b) and UL486D standards
