1/0 to 250 MCM Al or Cu Thermo-Shrink Underground Splice Kit 46-403

Product Information

Specification

1/0 to 250 MCM Al or Cu Thermo-Shrink Underground Splice Kit

Description:

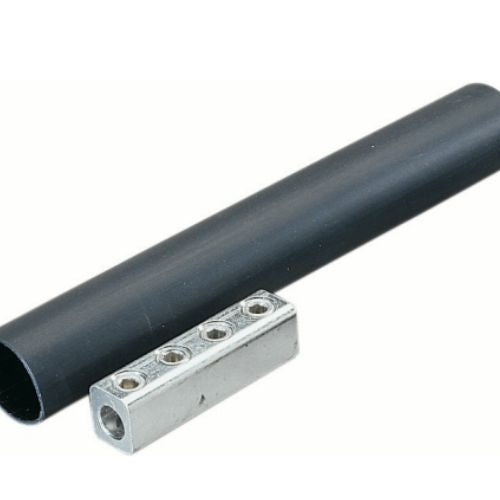

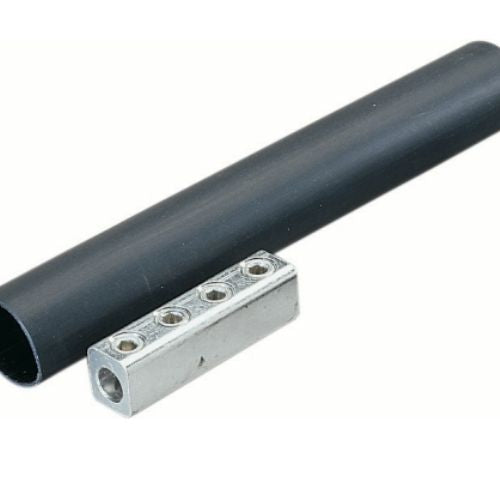

The Thermo-Shrink Al/Cu Splice Kit offers a dependable and easy-to-install solution for splicing copper and/or aluminum cables ranging from 1/0 to 250 MCM, rated up to 600V. Designed for in-line connections, each kit includes a set screw barrel connector and heavy-wall, adhesive-lined heat shrink tubing that forms a moisture-resistant, durable seal once heated.

This splice kit is for direct burial applications, providing long-lasting protection against environmental factors such as moisture and abrasion. The UV-resistant tubing adds further durability in outdoor or underground settings. Installation is quick and straightforward, requiring only heat to activate the seal.

The kit complies with 2005 NEC Code 110-14(B), ensuring safe, code-compliant connections in the field.

Features:

• Connects copper and/or aluminum cables from 1/0 to 250 MCM
• Heavy-wall, adhesive-lined heat shrink tubing forms a durable, moisture-proof seal
• Set screw barrel connector ensures secure conductor engagement
• Heat-activated tubing offers superior protection against moisture ingress
• Excellent abrasion resistance for rugged environments
• UV-resistant outer sleeve for long-term durability
• Rated for direct burial applications
• Voltage/Temperature Rating: 600V max, 105°C
• Compliance: Meets 2005 NEC Code 110-14(B)
