14-8 AWG Thermo-Shrink Underground Splice Kit 46-400

Product Information

Specification

14-8 AWG Thermo-Shrink Underground Splice Kit

Description:

The Thermo-Shrink Underground Feeder (UF) Splice Kit provides a dependable and easy-to-use solution for splicing 600V UF cables ranging from 14 to 8 AWG. Whether repairing or extending underground feeder cables, this kit is for both submersible and direct burial applications, including use in irrigation systems.

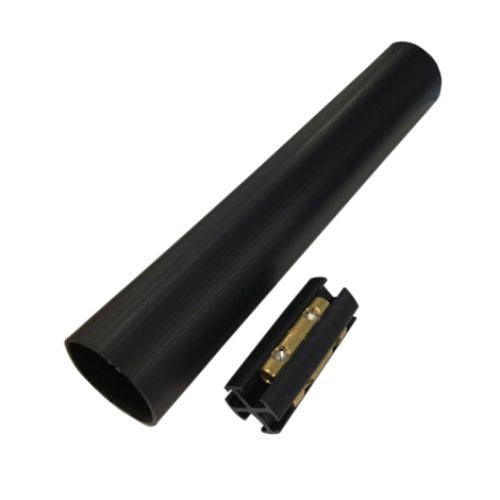

Each kit features heavy-wall, adhesive-lined heat shrink tubing and a four-position set screw barrel connector that ensures strong electrical engagement with each conductor. When heat is applied, the tubing forms a moisture-proof seal that protects the splice from water intrusion and provides excellent abrasion resistance for long-term durability.

Designed for quick and efficient installation, the kit is UV-resistant and meets the requirements of the 2002 NEC Code 110-14(b) and UL486D.

Features:

• Splices 600V UF cables from 14/3 (with or without ground) to 8/3 (without ground)
• Heavy-wall, adhesive-lined heat shrink tubing delivers a durable, moisture-proof seal
• Set screw barrel connector ensures solid and secure wire engagement
• Heat-activated seal protects against moisture ingress and harsh conditions
• Excellent abrasion resistance for tough environments
• UV-resistant outer tubing for added longevity
• Rated for submersible and direct burial use
• Voltage Rating: 600V max
• Temperature Rating: 105°C
• Standards Compliance: Meets 2002 NEC Code 110-14(b) and UL486D
