Product Information

Specification

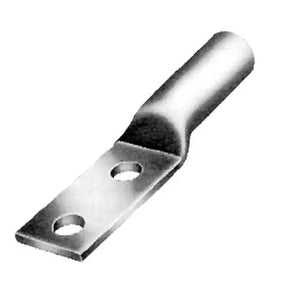

Burndy YA34A3N131T12E 500 MCM 1/2" Stud 2 Hole Standard Barrel Aluminum Terminal Lug

Also Known as :

Burndy Connector, Aluminum Terminal Lug, Power Connectors, Burndy Aluminum LUG, Terminal Lug, YA34A3N131T12E.

Description :

500 kcmil, AL Terminal, One Hole, 1/2", Stud Size, Narrow Tongue, Internal Chamfer, Tin Plated, Prefilled PENETROX™, End Cap, AL9CU, UL/CSA, 90°C, Up to 35kV, E-Line Series, Pink Color Code, 300 Die Index, Stud Hole Spacing=1.75 in

Conductor:

• Copper Str Size Range: 500 kcmil
• Wire Size: 500 kcmil

Certifications and Compliance:

• CSA Approved: Yes
• ETL: No
• Industry Standard(s): UL 486A-486B
• Standards: RoHS Compliance Status: CM
• UL Listed: Yes

Specification :

• Conductor MCM: 500
• Stud Size: 1/2
• Color Code:  Pink
• Die Index:  300
• EU RoHS Indicator: Yes
• Finish Type: Tin-Plated
• Material:  Aluminum
• Dimension (Stud Size): 1/2 inches
• Physical Attribute: Straight
• Voltage Rating: 35 kV
• Part Number: YA34A3N131T12E

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
