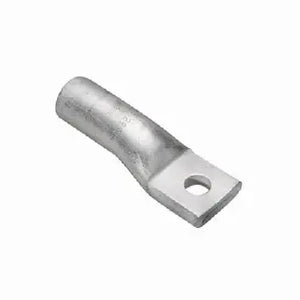

Burndy YA8CA1 8 AWG #10 Stud 1 Hole Standard Barrel Aluminum Terminal Lug

Burndy YA8CA1 8 AWG #10 Stud 1 Hole Standard Barrel Aluminum Terminal Lug
Roll over image to Zoom

Burndy YA8CA1 8 AWG #10 Stud 1 Hole Standard Barrel Aluminum Terminal Lug

SKU: YA8CA1
wire-and-cable-accessories

Select a Gauge

Burndy YA8CA1 8 AWG #10 Stud 1 Hole Standard Barrel Aluminum Terminal Lug

Availability: In stock

Price:
Regular price
$6.63
Sale price
$5.10 /Qty 23% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Burndy YA8CA1 8 AWG #10 Stud 1 Hole Standard Barrel Aluminum Terminal Lug

Also Known as :

Burndy Connector, Aluminum Terminal Lug, Power Connectors, Burndy Aluminum LUG, Terminal Lug, YA8CA1.

Description :

8 AWG, AL Terminal, One Hole, #10, Stud Size, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™, End Cap, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 374 Die Index.

Conductor:

• AL Str Size: 8 AWG
• AL Str Size Range: 8 AWG
• Copper Str Size: 8 AWG
• Copper Str Size Range: 8 AWG
• Wire Size: 8 AWG

Certifications and Compliance:

• CSA Approved: Yes
 ETL: No
• UL Recognized: No
 cULus: No
• Industry Standard(s): UL 486A-486B
• Standards: Industry Standards Met: UL 486A-486B
• Standards: RoHS Compliance Status: CM
• UL Listed: Yes

Specification :

• Conductor MCM: 8 AWG
• Color Code: Blue
• Die Index: 374
• Finish Type: Tin-Plated
• Material: Aluminum
• Number of Holes: 1
• Tongue Type: Standard
 Plated: Y
• Plating Type:  Tin - Electro Plated
• Dimension (B): 0.62 inches
• Dimension (Bolt Hole Size): 0.20 inches
• Dimension (D): 0.60 inches
• Dimension (Hole Size): 0.20 inches
• Dimension (Length Overall): 1.50 inches
• Dimension (N): 0.20 inches
 Dimension (Outside Diameter): 0.30 inches
• Dimension (Pad Width): 0.53 inches
• Dimension (Z): 0.40 inches
 Physical Attribute: Straight
 Voltage Rating: 35 kV
 Part Number: YA8CA1


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
