Triplex Aluminum Conductor Underground Direct Burial 1350 Series 600V URD

Name: Triplex Aluminum Conductor Underground Direct Burial 1350 Series 600V URD
Brand: Nassau National Cable
SKU: NNC3145X
Availability: InStock
Rating: 4.94 (7563 reviews)

Roll over image to Zoom

Triplex Aluminum Conductor Underground Direct Burial 1350 Series 600V URD

Write a Review

Ask a Question Download PDF

SKU: NNC3145X

Select a Gauge

Triplex Aluminum Conductor Underground Direct Burial 1350 Series 600V URD

Where are we? 4 Continents 8 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Name	Length	Price (Per FT.)	Action
Product Name 6-6-6 Erskine Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $0.90 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 4-4-4 Vassar Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $1.09 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 2-2-4 Stephens Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $1.15 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 2-2-2 Ramapo Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $1.28 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 1/0-1/0-2 Brenau Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $1.69 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 1/0-1/0-1/0 Bergen Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $1.86 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 2/0-2/0-2/0 Hunter Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $2.15 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 2/0-2/0-1 Converse Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $2.22 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 3/0-3/0-1/0 Hollins Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $2.46 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 4/0-4/0-2/0 Sweetbriar Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $2.72 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 4/0-4/0-4/0 Monmouth Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $3.09 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 250-250-3/0 Pratt Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $3.24 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 350-350-4/0 Wesleyan Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $4.50 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 500-500-350 Rider Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $6.07 Available Min: 1 FT Max: 1000000 FT	Action
Product Name 500-500-300 Holyoke Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 750-750-500 Fairfield Triplex Aluminum Conductor Underground Direct Burial 600V URD	Length /FT	Price (Per FT.) $11.45 Available Min: 1 FT Max: 1000000 FT	Action

Product Information

Specification

Triplex Aluminum Conductor Underground Direct Burial 1350 Series 600V URD

Applications:

The Aluminum 600V URD is designed to serve in the secondary distribution circuits for power. In these secondary circuits, the electrical cable is installed in duct or direct burial applications. Due to its versatility, conductor strength, and insulation integrity, it works well for these outdoor applications. It is also used in wet and dry places since the electrical cable has a maximum operating temperature of 90°C. The triplex wire for sale is also designed to provide an option of pre-pulling into ducts.

Also Known As:

Aluminum urd cable, urd direct burial cable, three conductor cable, tri plex wire, triplex cable, triplex aluminum underground wire, 3 conductor power cable, aluminum triplex, underground triplex, triplex underground cable, triplex wire underground, direct burial triplex, triplex conductor, direct burial electrical cable, direct burial power cable, aluminum direct burial cable.

Standards:

ASTM B-230
ASTM B-231
ASTM B-609
ASTM B-901
ICEA S-105-692
J-C- 30B Federal Specification
RUS accepted

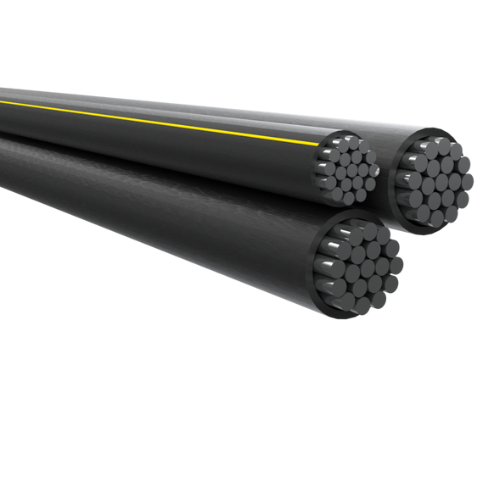

Construction

Conductors:

Aluminum conductors used for this cable are designed in either concentric strand or in compressed series. The advantage with a compressed conductor is the reduced bulkiness. Compressed conductors are also stronger and tougher; the stranded conductors are highly flexible and tend to have lower electrical resistance. Stranded conductors therefore reduce power loss and are also easier to use in applications where flexibility is vital. Aluminum 600 V URD cable has three aluminum conductors.

Insulation:

Versatile insulation system made of cross linked black polyethylene material helps to secure the cable conductors. This insulation is water tight, repulsive to corrosive substances, resistant to oil, heat and flame. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions like direct burial installation.
