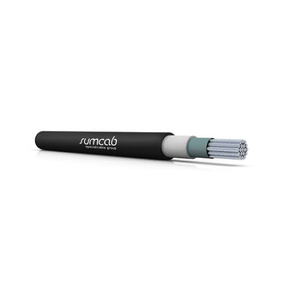

Sumflex® 120600010230000 12 AWG 1C Tinned Copper Unshielded PCP NSGAFÖU 1.8/3kV Flexible Rubber Cable

Sumflex® 120600010230000 12 AWG 1C Tinned Copper Unshielded PCP NSGAFÖU 1.8/3kV Flexible Rubber Cable

Allowable Ampacity for Sumflex® 120600010230000 12 AWG 1C Tinned Copper Unshielded PCP NSGAFÖU 1.8/3kV Flexible Rubber Cable: 100 Amps

Application:

For installation in distribution cabinets, appliance wiring, in trains and buses, railway applications in general. Suitable for indoor and outdoor installation, suitable for medium voltage applications up to 3kV.

Also Known as:

Sumflex® NSGAFÖU Cable, NSGAFÖU Cable, Sumflex Cable, Flexible Cable, Sum Cable, Rubber Cable

General properties:

• Construction regulations DIN VDE0250 Part 602
• Flame retardant according to EN60332-1-2 / IEC60332-1-1
• Excellent chemical resistance
• Good resistance to oils and greases
• Suitable to be submerged in water
• Excellent mechanical resistance
• UV resistant

Technical characteristics:

• Service voltage 1.8/3kV
• Test voltage 6,000V
• Service temperature –25ºC to 90ºC
• In case of short circuit 250ºC for 5 sec.
• 4 x Ø Minimum bending radius in fixed installation

Specification:

AWG Size: 12
Number of Conductor: 1
Conductor: Tinned Copper
Cond. x section mm²: 1x4
Exterior: 6.4 mm
R. of curvature min. mm: 26
Rated Voltage: 1.8/3kV
Weight: 60.47 lbs/MFT
Part Number: 120600010230000
