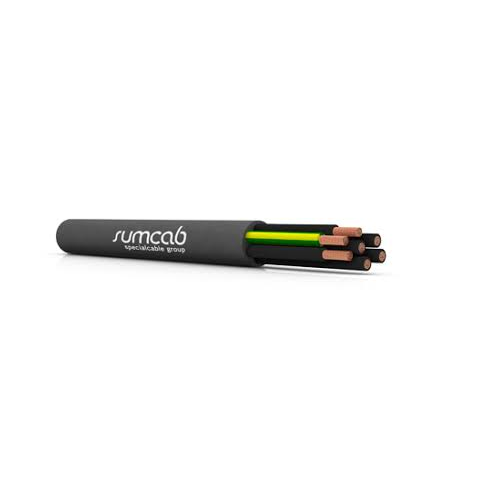

Sumflex® 100900070180100 18 AWG 7C Bare Copper Unshielded PVC TRI H05VV5-F UL/CSA 600V Flexible Cable

Sumflex® 100900070180100 18 AWG 7C Bare Copper Unshielded PVC TRI H05VV5-F UL/CSA 600V Flexible Cable

Allowable Ampacity for Sumflex® 100900070180100 18 AWG 7C Bare Copper Unshielded PVC TRI H05VV5-F UL/CSA 600V Flexible Cable: 100 Amps

Application:

Flexible cable for use in signaling, control and measurement, etc. With oil resistant and highly flexible cover. Manufactured with HAR, UL and CSA approval.

Also Known as:

Sumflex® TRI H05VV5-F Cable, H05VV5-F Cable, Sumflex Cable, Flexible Cable, Sum Cable, Control Cable

General properties:

• HAR (Europe), UL (USA), CSA (Canada)
• Flame retardant according to EN60332-1-2 / IEC60332-1-1
• Good resistance to chemical agents
• Excellent resistance to industrial oils and greases
• Resistance to occasional contact with water

Technical characteristics:

• HAR service on: 300/500V; UL/ CSA: 600V
• Test voltage 3,000V for 5 min.
• Service temperature –30ºC to 90ºC (– 40ºC to 90ºC in fixed installation)
• Electrical resistance UNE 60228
• Minimum bending radius 12.5 x Outside diameter (4 in fixed installation)

Specification:

AWG Size: 18
Caliber AWG: 19
Number of Conductor: 7
Conductor: Bare Copper
Conductor x Section: 7G 0.75 mm²
Exterior: 9.9 mm
Resistance Ω/km at 20ºC: 26.0
Try (30ºC) To (on air): 6
Rated Voltage: 600V
Weight: 97.43 lbs/MFT
Part Number: 100900070180100
