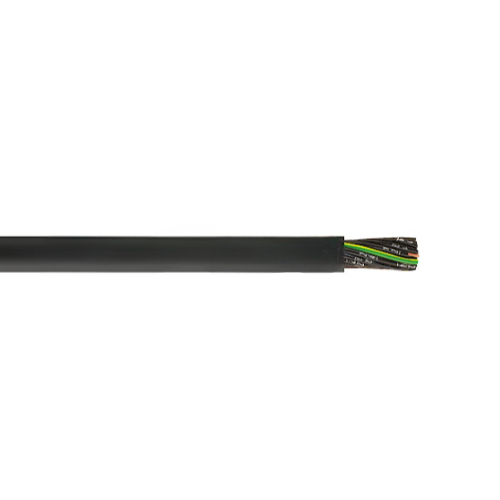

HELUKABEL JZ-600 HMH / OZ-600 HMH Control and Connection Cable

HELUKABEL JZ-600 HMH / OZ-600 HMH Control and Connection Cable

Applications:

Control and connection cable in tool machinery, conveyor belts, production lines, plant construction, in air-conditioning devices, in metallurgical, steel and rolling mills. For fixed installation and flexible applications with occasional, not constantly recurring free movement without forced motion, without tensile stress and for medium mechanical stress. The cable is suitable for use in dry, damp and wet locations, outdoors (fixed installation) and on plaster.

Also Known As:

Halogen-Free Control Cable,JZ-600 HMH Flexible Cable,OZ-600 HMH Industrial Cable, Flame-Retardant Control Cable, LSZH (Low Smoke Zero Halogen) Control Cable, Multicore Flexible Control Cable, HELUKABEL LS0H Cable (JZ/OZ Series), Grey Control Cable – EMC Friendly, VDE-Approved HMH Cable, Control Cable for Machinery and Plant Engineering

Technical Data:

Control and connection cable in alignment with DIN VDE 0285-525-2-51 / DIN EN 50525-2-51, DIN VDE 0285-525-3- 11 / DIN EN 50525-3-11

Temperature range
flexible -25°C to +70°C
fixed -40°C to +70°C

Nominal voltage
AC U0/U 600/1000 V

Test voltage core/core
4000 V

Minimum bending radius
flexible 15x Outer-Ø
fixed 7.5x Outer-Ø

Cable Structure:

• Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
• Core insulation: halogen-free polymer acc. to DIN VDE 0207-363- 7 / DIN EN 50363-7 (compound type TI6)
• Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
• Protective conductor: starting with 3 cores, G = with protective conductor GN-YE, in the outer layer (JZ), x = without protective conductor (OZ)
• Cores stranded in layers with optimal lay lengths
• Outer sheath: halogen-free polymer acc. to DIN VDE 0207-363-8 / DIN EN 50363-8 (compound type TM7)
• Sheath color : black (RAL 9005)
• Length marking: in meters

Properties:

• Resistant to: UV radiation, weathering effects
• Largely resistant to: oil
• Ror outdoor use
• Halogen-free
• The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Tests:

• Halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
• Corrosiveness of combustion gases acc. to DIN VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2
• Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
• Bundle fire test acc. to DIN VDE 0482-332-3-24 / DIN EN 60332- 3-24 / IEC 60332-3-24
• Smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034- 1+2 / IEC 61034-1+2
• UV-resistant acc. to DIN EN ISO 4892-2
• Weather-resistant acc. to DIN EN ISO 4892-2
• Certifications and approvals: EAC

Notes:

• The conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
