Product Information

Specification

Description:

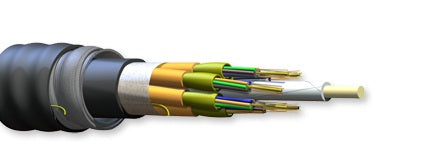

• Corning FREEDM® One unitized interlocking armored plenum cables are standard FREEDM One unitized plenum cables inside a spirally wrapped aluminum interlocking armor for ruggedness and superior crush resistance. These cables meet the application requirements of the National Electrical Code® (NEC® Article 770) and are OFCP and FT-6 listed, as well as meeting ICEA S-104-696 test criteria. Available in 62.5 µm, standard 50 µm, laser-optimized 50 µm, single-mode and hybrid versions, the armored design allows easy, one-step installation of cable, with no inner duct required, reducing overall installation costs.

Features And Benefits:

• Flexible interlocking armor
  Up to seven times the crush protection compared to non-armored cables
• Eliminates cable transition at building entrance
  Reduces installation time and cost
• Tight-buffered design
  Eliminates need for fan-out kits

Standards:

• Listings: National Electrical Code® (NEC®) OFCP, CSA FT-6
• Design and Test Criteria: NFPA 262 and CSA FT-6 (for plenum, riser and general building applications); ICEA S-104-696

Temperature Range:

• Storage: -40 °C to 70 °C (-40 °F to 158 °F )
• Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )

Chemical Characteristics:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Specification:

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
