Description:

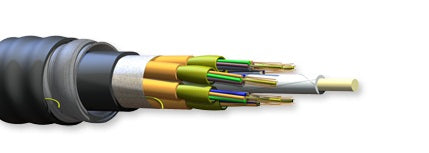

• Corning FREEDM® One unitized interlocking armored riser cables are standard FREEDM One unitized riser cables inside a spirally wrapped aluminum interlocking armor for ruggedness and superior crush resistance. These cables meet the application requirements of the National Electrical Code® (NEC® Article 770) and are OFCR and FT-4 listed, as well as meeting ICEA S-104-696 test criteria. Available in 62.5 µm, standard 50 µm, laser-optimized 50 µm, single-mode and hybrid versions, the armored design allows easy, one-step installation of cable, with no inner duct required, reducing overall installation costs.

Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here.

Features And Benefits:

• Flexible interlocking armor
  - Up to seven times the crush protection compared to non-armored cables

• Eliminates cable transition at building entrance
  - Reduces installation time and cost

• Tight-buffered design
  - Eliminates need for fan-out kits

Standards:

• Listings: National Electrical Code® (NEC®) OFCR, CSA FT-4
• Design and Test Criteria: ICEA S-104-696

Temperature Range:

• Storage: -40 °C to 70 °C (-40 °F to 158 °F )
• Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )

Chemical Characteristics:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
