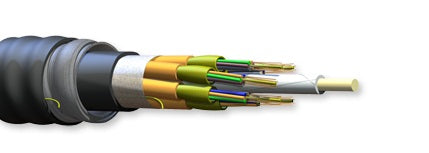

Corning 048T8F-61180-A1 48 Fiber OM3 Riser 50µm Freedm One Unitized TB Interlocking Armored Cable
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
Description:
• Corning FREEDM® One unitized interlocking armored riser cables are standard FREEDM One unitized riser cables inside a spirally wrapped aluminum interlocking armor for ruggedness and superior crush resistance. These cables meet the application requirements of the National Electrical Code® (NEC® Article 770) and are OFCR and FT-4 listed, as well as meeting ICEA S-104-696 test criteria. Available in 62.5 µm, standard 50 µm, laser-optimized 50 µm, single-mode and hybrid versions, the armored design allows easy, one-step installation of cable, with no inner duct required, reducing overall installation costs.
Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here.
Features And Benefits:
• Flexible interlocking armor
- Up to seven times the crush protection compared to non-armored cables
• Eliminates cable transition at building entrance
- Reduces installation time and cost
• Tight-buffered design
- Eliminates need for fan-out kits
Standards:
• Listings: National Electrical Code® (NEC®) OFCR, CSA FT-4
• Design and Test Criteria: ICEA S-104-696
Temperature Range:
• Storage: -40 °C to 70 °C (-40 °F to 158 °F )
• Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )
Chemical Characteristics:
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Specification:
All-Dielectric | NO |
Armored | YES |
Cable Type | TIGHT BUFFERED |
Fiber Count | 48 |
Fiber Type | OM3 50 MICRON MULTIMODE |
Fire Rating | RISER |
Rodent Protected | NO |
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
