Product Information

Specification

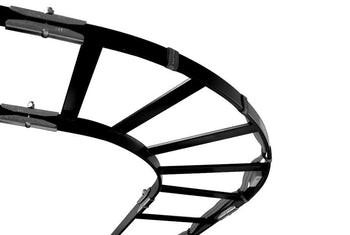

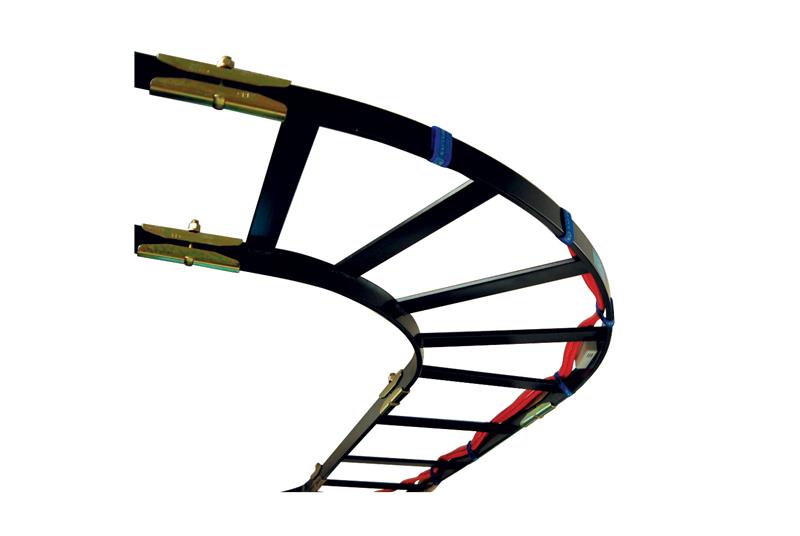

Cable Runway E-Bend Black 12"W x 1.5"H x 27"L CPI 10822-712

Description:

Creates a gradual bend in horizontal cascading cable runs and a gradual sweep in horizontal planes of Cable Runway runs. Designed for cabling in conformance with the minimum bend radius requirements (typically 4 times the cable diameter). Made of lightweight 1-1/2" x 3/8" (39.1mm x 9.53 mm) tubular steel to fit a standard Cable Runway

Product Features:

•Made of lightweight 1-1/2” x 3/8” (38.1 mm x 9.53 mm) tubular steel
•Cross members welded at approximately 23-degree increments
•Outside/Inside is determined by welding cross members closer to the cable side
•Only gold radius bends are UL Classified
