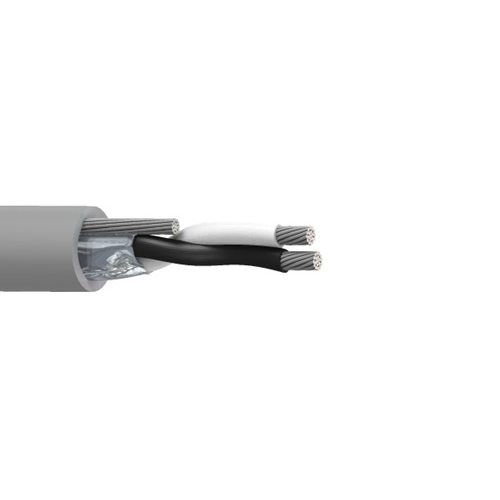

Belden 8761MN 22 AWG 1P Individual Foil Shield PP Insulation Audio Control And Instrumentation Cable

Applications:

Belden Audio Control and Instrumentation Cable are designed for data transmission with challenging industrial applications in mind. The cable has a 10-year warranty and is guaranteed to last in the most demanding conditions. The reliable and versatile cable can be used in a variety of industrial applications as it meets numerous industry standards. Belden Audio Control and Instrumentation Cables come with many jackets and insulation options, making it possible to match the cable with the exact demands of the environment. The facilities where the cable is manufactured are certified by ISO. The cable can operate in temperatures of up to 800C. Its twisted pair design allows the cable to tolerate noise and transfer data at speed higher than average.

 Also Known As:

8761MN 22 AWG 1P Belden wire, 8761MN 22 AWG 1P Belden cable, Data Cable near me, Harsh Environments, Control Cable, Component Video Cable, Component Audio Cable, Belden Communication Cable, Belden Instrumentation Cable, Twisted Pair Belden Cable.

Standards:

•  ISO Certified
•  UL Listed
• NEC Approved
• SEC Approved
• UL AWM Style 2919: 30V, 80°C
• UL AWM Style 2464: 300V, 80°C
• Non-UL Listed: 300V, 60°C

Conductor:

The conductors are made of stranded or solid tinned copper. It has incredible electrical properties and can transmit large amounts of current at a faster rate due to its well-arranged electrons. It is also available in a wide range of sizes from 18 AWG up to 22 AWG. A drain wire made of stranded or solid copper ensures the right amount of current is delivered within the conductors.

Insulation:

Polypropylene (PP) insulation offers extra protection from damage. This thermoplastic insulation is resistant to UV and moisture.

Jacket:

A PVC jacket that is reliable to weather, abrasion, corrosion, flames, UV, impact, chemicals, acids, oils, sunlight, and industrial waste.

Shielding:

Individually Shielded Pairs with Beldfoil or Beldfoil® (Z-Fold®) Aluminum/Polyester Foil (100% Coverage).

Specification:

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
