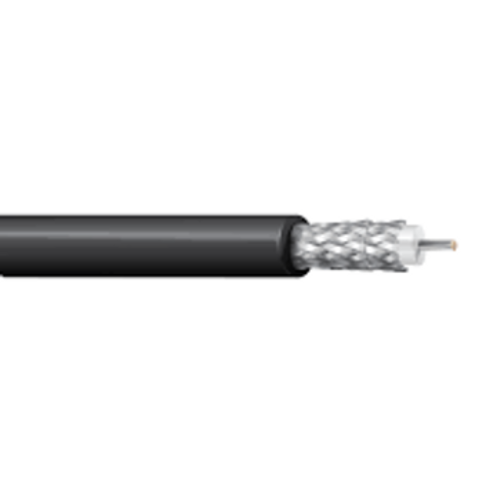

Belden 8262 20 AWG 19x33 Stranded M17/155 TC Braid Shield 50 Ohm PVC Coaxial Cable
Allowable Ampacity for Belden 8262 20 AWG 19x33 Stranded M17/155 TC Braid Shield 50 Ohm PVC Coaxial Cable: 100 Amps
Also Known as:
Coaxial Cable, High Frequency Cable, Tinned Copper Braid Cable, Belden Cable, M17/155 Cable
Description:
Specifications:
Gauge Size: 20
No of Conductors: 1
Stranding: 19
Armor Type: None
Coax Construction: Coaxial
Conductor Diameter: N/A
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Impedence: 50 OHMS
Insulation Material: PE
Jacket Material: PVC
Overall Shielding Type: Tinned Copper Braid
Specification(s): MIL M17/155
Supplier Series: 8262
Temperature: Not Specified
IEWC Part: RG58C/U/MOBS-0BEE2
Manufacturer: Belden
Manufacturer Part: 8262 0101000
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
