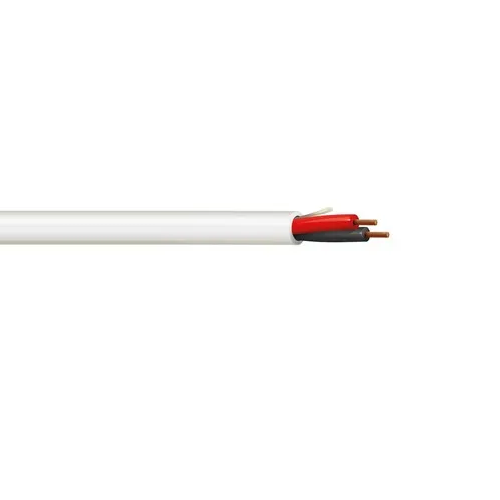

Belden 6320UE 18 AWG 2C Solid Bare Copper Plenum CMP Unshielded LS PVC Security And Sound Cable
Allowable Ampacity for Belden 6320UE 18 AWG 2C Solid Bare Copper Plenum CMP Unshielded LS PVC Security And Sound Cable: 100 Amps
Also Known as:
Safety Cable, Sound Cable, Security Cable, Fire Alarm Cable, Multi-Conductor Cable, Electronic Cable, Belden Cable
Description:
Cables intended for conventional fire alarm systems, with multiple types available to match the cable to the application within the system, such as plenum space.
Specifications:
Gauge Size: 18
Stranding: Not Specified
No. of Conductors: 2
Armor Type: None
Conductor Configuration: Conductors
Conductor Metal: Bare Copper
Conductor Shielding Type: Unshielded
Conductor Type: Solid
Insulation Material: LS-PVC
Jacket Material: LS-PVC
Specification(s): NEC CMP
Overall Shielding Type: Unshielded
Temperature: 75C
Voltage: 300V
IEWC Part: 32018110
Manufacturer: Belden
Manufacturer Part: 6320UE 877U1000
