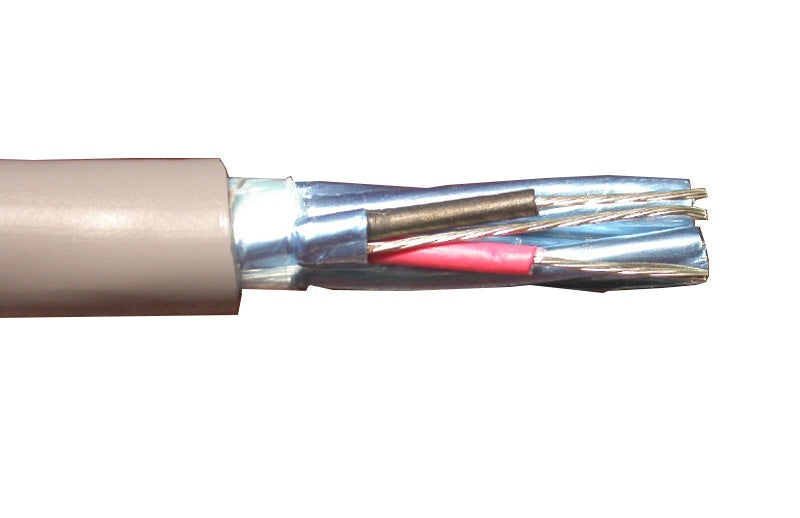

Alpha Wire 6079C 24 AWG 9 Pair Individually Foil Shielded FPP Insulation 300V Communication and Control Cable
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
Communication and Control 300V Individually Foil Shielded Pairs or Overall Foil Shielded, Multipair, FPP, PVC
UL AWM 2490, 2493, 2668 VW-1 UL CM CSA CMG FT4
Operating Temperature:
• -20°C to +75°C (CM)
• -20°C to +60 (AWM, CMG)
Conductor Color Coding:
• Chart K (page 529)
Materials:
• Solid or stranded tinned copper conductors
• Foam polypropylene insulation
• Individual aluminum/polyester foil shield, 25% overlap min. Foil facing inward Stranded tinned copper drain wire, 24 AWG (0.23 mm2), 7/32 (7 x 0.20 mm)
• Slate PVC jacket (unless otherwise noted)
Availability:
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Specification:
| Conductor Count | 9 PAIR |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 AWG |
| Conductor Type | STRANDED |
| Insulation Material | FPP |
| Jacket Material | PVC |
| Product Type | Communication and Control Cable |
| RoHS Compliant | YES |
| Screen/Shield Type | YES |
| Screen/Shield | FOIL |
| Standards | CA Prop 65, CSA CMG, CSA FT4, UL AWM 2493, UL CM |
| Voltage Range | 300V |
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
