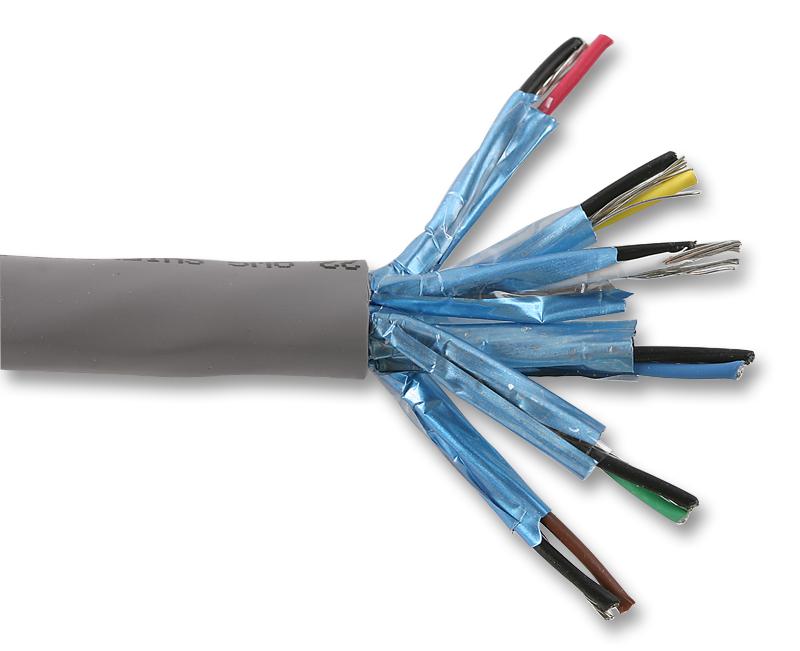

Alpha Wire 58414 22 AWG 4 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable

Name: Alpha Wire 58414 22 AWG 4 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable
Brand: Nassau National Cable
SKU: NNC20998X
Price: 3.27 USD
Availability: InStock
Rating: 4.91 (8298 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC20998X

Select a Gauge

Alpha Wire 58414 22 AWG 4 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $3.27 /FT
Sale price: $3.27 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Communication and Control 300/150 V Foil Shield, Multipair, PVC, PVC Plenum Rated

UL CL2P UL CMP CSA CMP FT6

Operating Temperature:

• -5°C to +75°C

Conductor Color Coding:

• Chart A1 (page 528)

Materials:

• Stranded bare copper conductors
• Plenum-rated PVC insulation
• Foil shield Aluminum/polyester foil shield, 25% overlap min. Foil facing outward Stranded tinned copper drain wire (see tables for size)
• Slate plenum-rated PVC jacket

Availability:

500 ft (152 m)
1000 ft (305 m)

Specification:

Conductor Count	4 PAIR
Conductor Material	BARE COPPER
Conductor Size	22 AWG
Conductor Type	STRANDED
Earth/Ground Wires	NO
Insulation Material	PPV
Jacket Material	PPV
RoHS Compliant	YES
Screen/Shield Type	FOIL
Screen/Shield	SHIELDED
Voltage Range	300V
UNSPSC Code	26121539
