Product Information

Specification

Approvals:

• Normal operating temperature: -45°C to 100°C
• AAR S-4210
• EPA 40 CFR, Part 261
• OSHA Acceptable
• IEEE 1202 (70,000 BTU/hr) Flame Test
• IEEE 383 (70,000 BTU/hr) Flame Test
• VW-1 Flame Test

Applications:

• ECP brake cable is designed for installation both under and between freight cars.

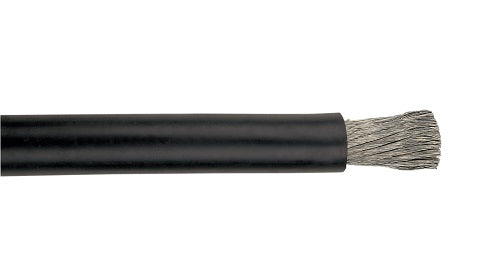

Construction:

• Conductors: Stranded tinned copper
• Insulation: 125°C Crosslinked polyolefin (XLPO)
• Shielding: Overall tinned Copper braided shield designed for EMI/RFI reduction
• Jacket: Heavy Duty Neoprene jacket provides excellent low temperature performance

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
