Product Information

Specification

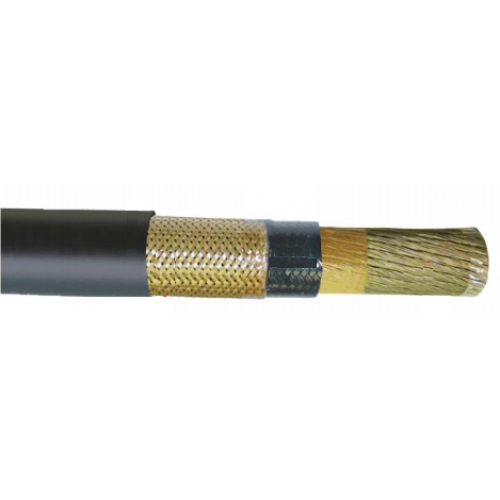

4 AWG 1C Type P Unarmored 600/1000V Power Cable

Allowable Ampacity For 4 AWG 1C Type P Unarmored 600/1000V Power Cable : 128 Amps at 100ºC

Product Description

• 0.6/1kv Or 2kv Flexible Single Conductor Marine/offshore Power Cable
• 110°c Temperature Rating
• Oil, Abrasion, Moisture, Petrochemical And Sunlight Resistant
• Abs, Dnv Approved
• Etl, Ul, Csa Listed

Conductor: Flexible Stranded Tinned Annealed Copper Wire

Insulation: Cross-linked Flame Retardant Polyolefin (XLPO)

Color Code: IEEE 1580 Table 22

Standards:

• IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
• TYPE P INSULATION: IEEE 1580, UL 1309 TYPE X110
• TYPE N SHEATH: IEEE 1580, UL 1309
• FLAME RETARDANT: IEEE 1202 VW-1, IEC 60332-3 CAT. A
• FIRE RESISTANT: IEC 60331-1/2/21 (OPTIONAL)
• COLD BEND/IMPACT: CSA 22.2 NO. 03 (-40°C/-35°C)

Specification:
