26 AWG 4P Helukat 803387 250S CAT6 CMX SF/UTP PUR CHAIN Industrial Ethernet Green Cable

26 AWG 4P Helukat 803387 250S CAT6 CMX SF/UTP PUR CHAIN Industrial Ethernet Green Cable

Applications:

HELUKAT 100S CAT.5e 30 V 4P SF/UTP PUR CHAIN is designed for use in cable carriers and the recurring loads caused by moving machine components. Thanks to the PUR sheath, it also offers excellent resistance to common mineral oils, greases and cooling lubricants.

Also Known As:

26 AWG 4P Helukabel ethernet cable, Helukabel industrial ethernet, Helukabel Cat6 cable, Helukabel Profinet cable, Helukabel Cat5e cable, 26 AWG 4P Helukabel data cable, Helukabel network cable, Helukabel high flex ethernet, 26 AWG 4P Helukabel shielded ethernet, 26 AWG 4P Helukabel automation cable.

Technical Data:

Industrial Ethernet cable / Cat. 6 acc. to ISO/IEC 11801, DIN EN 50173, IEC 61156-6, DIN EN 50288-5-2, UL-Std. 444 (CMX), CSA-Std. C22.2 No. 214 - CMX, UL-Std. 758 (AWM) Style 21576

Temperature range
flexible -30°C to +70°C
fixed installation -40°C to +80°C UL (CMX) to +75°C UL (AWM) to +80°C

Peak operating voltage
125 V (not for high power current installation purposes)

Test voltage core/core
700 V

Conductor resistance at 20°C
max. 140.0 Ohm/km

Loop resistance at 20°C
max. 280.0 Ohm/km

Insulation resistance min.
min. 5.0 GOhm x km

Mutual capacitance core/core at
at 800 Hz, approx. 50 pF/m

Rel. Velocity of Propagation
approx. 67%

Characteristic impedance
at 1 to 100 MHz, 100 Ohm ± 15 Ohm
at 101 to 250 MHz, 100 Ohm ± 20 Ohm

Caloric load
approx. 1.35 MJ/m

Minimum bending radius
flexible 8x Outer-Ø
fixed 4x Outer-Ø

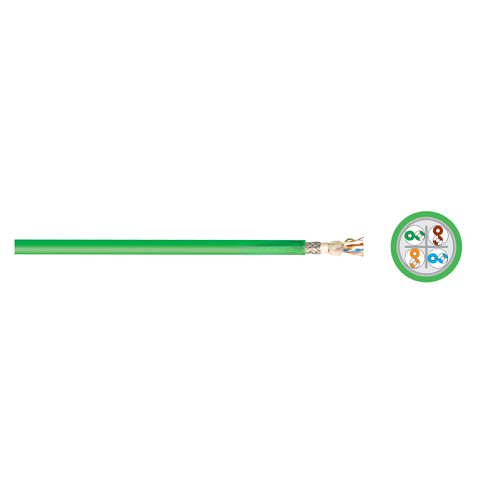

Cable Structure:

• Copper wire tinned, AWG sizes
• Core insulation: PP
• Core identification: colour coded, pairs:
No. 1: white-blue / blue
No. 2: white-orange / orange
No. 3: white-green / green
No. 4: white-brown / brown
• Pairs with optimal lay lengths stranded around a central cross-shaped filler
• Inner sheath: halogen-free, flame retardant compound (FRNC)
• 1. Screen: plastic-coated aluminium foil (St)
   2. Screen: braided screen of tinned copper wires
• Outer sheath: PUR
• Sheath colour: green
• Length marking: in meters

Properties:

• resistant to: oil, UV radiation
• abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant
• suitable for use in drag chains
• halogen-free
• flame-retardant

Tests:

•  halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
• certifications and approvals: EAC

Notes:

• Conductor sizes are based on the AWG measurement system, metric conductor sizes (mm²) are approximated and are for reference only
• UL Voltage Rating: 1000 V

Specifications:

• Size : 26 AWG
• No. cores x cross-sec. mm²: 4 x 2
• Cross-sec. mm², approx.: 0.15
• Conductor Ø mm, approx: 0.55
• Core Ø mm, approx.: 1.02
• Outer Ø mm, approx.: 8.0
• Cu. weight kg / km: 34.0
• Weight kg/km, approx: 63.0
