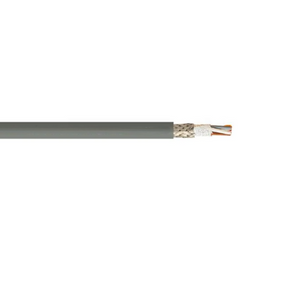

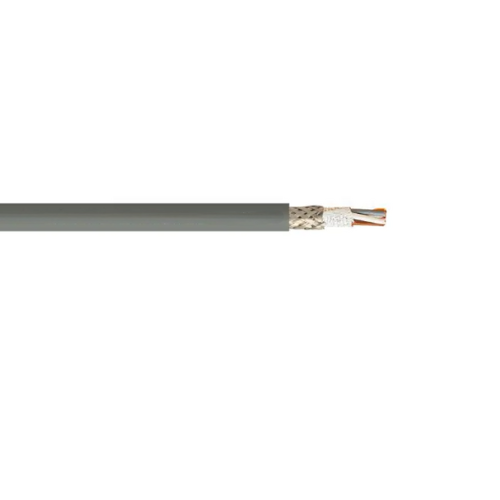

24 AWG 7C Helukabel 49935 SUPERTRONIC-310-C-PVC Drag Chain Cable
Applications:
Used as a highly flexible PVC drag chain cable suitable for frequent and fast lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. A long service life guarantees reliable function and high efficiency. The copper screening effectively protects against internal and external interference. Designed for the export-oriented machine construction industry, specifically for the USA and Canada. EMC = Electromagnetic Compatibility; in order to optimize EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
Also Known As:
24 AWG 7C SUPERTRONIC 310-C-PVC Cable, 24 AWG 7C HELUKABEL Drag Chain Cable UL/CSA, 24 AWG 7C HELUKABEL 310-C-PVC UL Style 2464 Cable, Helukabel EMC Drag Chain Cable, Flexible Shielded Control Cable UL/CSA, 24 AWG 7C HELUKABEL Machine Cable UL/CSA Rated, PVC Control Cable for Drag Chains, 24 AWG 7C Helukabel Industrial Flexible Cable, HELUKABEL 310-C-PVC EMC Cable, 24 AWG 7C PVC Shielded Multi-Conductor Cable, HELUKABEL UL/CSA PVC Cable for Motion Applications, Supertronic EMC Flexible Cable, HELUKABEL 310 Series PVC Cable, HELUKABEL Dynamic Chain Cable, 24 AWG 7C Helukabel Flexible EMC Cable UL Approved, 24 AWG 7C HELUKABEL AWM Style 2464 Control Cable.
Technical Data:
PVC drag chain cable acc. to UL-Std. 758 (AWM) Style 2464, CSA-Std. C22.2 No. 210 - AWM I/II A/B
Temperature range
flexible -5°C to +80°C
fixed -40°C to +80°C
Nominal voltage
UL (AWM) AC 300 V
Test voltage core/core
1500 V
Test voltage core/screen
1000 V
Breakdown voltage
3000 V
Coupling resistance
at 30 MHz, approx. 250 Ohm/ km
Minimum bending radius
flexible 7.5x Outer-Ø
fixed 4x Outer-Ø
Cable Structure:
• Copper wire bare, finely stranded, unilay with short lay lengths
• Core insulation: Special-PVC acc. to UL-Std. 1581 Tab. 50.183 (semirigid)
• Core identification acc. to DIN 47100, colour coded
• x = without protective conductor
• Cores stranded in layers with optimally matched lay lengths
• Fleece wrapping over each stranding layer
• Screen: braided screen of tinned copper wires, approx. coverage 85%
• Fleece wrapping
• Outer sheath: oil-resistant special PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM5), UL-Std. 1581
• Sheath colour: grey (RAL 7001)
• Length marking: in meters
Properties:
• resistant to: oil
• low adhesion
• suitable for use in drag chains
• the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests:
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, UL VW-1, CSA FT1
• oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404
Notes:
• the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
• for use in energy supply systems:
1) the assembly instructions must be observed
2) for further application parameters, please refer to the selection tables
3) for special applications, we recommend contacting us and using our data entry form for energy supply systems
Specifications:
• Size : 24 AWG
• No. cores x cross-sec. mm²: 7 x 0.25
• Outer Ø app. mm: 6.3
• Cu factor per km: 39.8
• Weight kg/km, approx: 80.0
