2 x 0.75mm² 19 Stranded Bare Copper Unshielded 120 Ohms XLPO 150C Automotive J1939 Cable

2 x 0.75mm² 19 Stranded Bare Copper Unshielded 120 Ohms XLPO 150C Automotive J1939 Cable
Roll over image to Zoom
2 x 0.75mm² 19 Stranded Bare Copper Unshielded 120 Ohms XLPO 150C Automotive J1939 Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU:
j1939-stranded-bare-copper-unshielded-120-ohms-xlpo-150c-automotive-cable
Price:
$0.00 /Qty
$0.00 /Qty
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

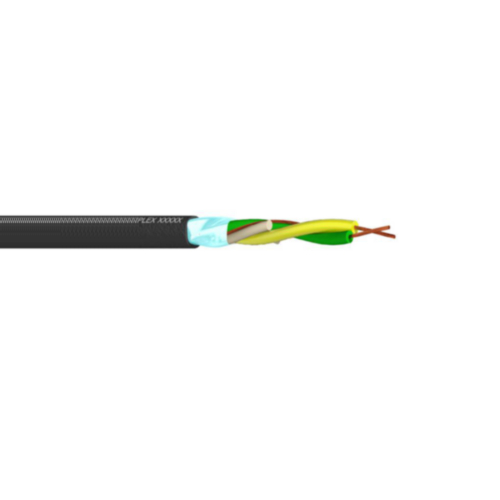

2 x 0.75mm² 19 Stranded Bare Copper Unshielded 120 Ohms XLPO 150C Automotive J1939 Cable

Allowable Ampacity for 2 x 0.75mm² 19 Stranded Bare Copper Unshielded 120 Ohms XLPO 150C Automotive J1939 Cable: 100 Amps

Also Known as:

Bare Copper Cable, Stranded Cable, Cross-linked Poly Cable, Multi-conductor Cable, Automotive J1939 Cable

Description:

J1939 cables meet the SAE standard for communication systems in agriculture, construction, fire/rescue, and other vehicles.

Specifications :

Gauge Size: 0.75MM2
No. of Conductors: 2
Brand: HUBER+SUHNER
Stranding: 19
Color: Black
Armor Type: None
Conductor Metal: Bare Copper
Conductor Type: Stranded
Impedence: 120 OHMS
Insulation Material: XLPO
Jacket Material: Cross-Linked Poly
Specification(s): ISO 14572, ISO 6722-1 CLASS D
Temperature: 150C
IEWC Part: 32100783
Manufacturer: HUBER+SUHNER
Manufacturer Part: 000000000012566216


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
