Product Information

Specification

Us Trade Size: 2"
ISO: 63 mm
CSA: 53 mm
Type: FSC-16
Internal Diameter: Min: 2.000 Inches & Max: 2.080 Inches
Inside Bend Radius: Static: 10.0
Weight: 105 Lbs per 100 Ft
Coil: 25 Inches: Part: 69562
Reel: 150 Inches: Part: 69564

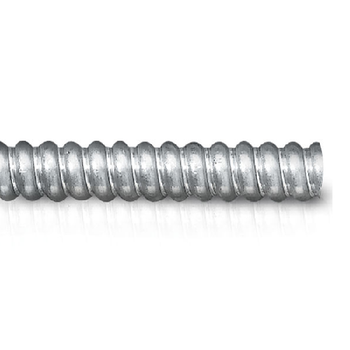

2" Trade Electri Helically Wound Flexible Conduits Galvanized Steel Type FSC Non-Jacketed

Allowable Ampacity for 2" Trade Electri Helically Wound Flexible Conduits Galvanized Steel Type FSC Non-Jacketed 100 Amps

Application:

• • Intended for applications where UL Listing is NOT REQUIRED.
• • Recommended Fittings: Internal (screw in) connectors intended for FMC (Flexible Metal Conduit)

Also Known As:

Flexible Conduits, Electri Helically Wound, Galvanized Steel, Type FSC, Non-Jacketed, Flexible Steel Conduit, Formed Strip, Helically Wound, Hot Dipped Galvanized

Type FSC:

This non-UL, non-jacketed flexible steel conduit has many universal wiring applications.

Construction:

• • Hot Dipped Galvanized Steel
• • Helically wound, formed strip

*Data provided on this page is subject to change based on different manufacturers' variances
