Product Information

Specification

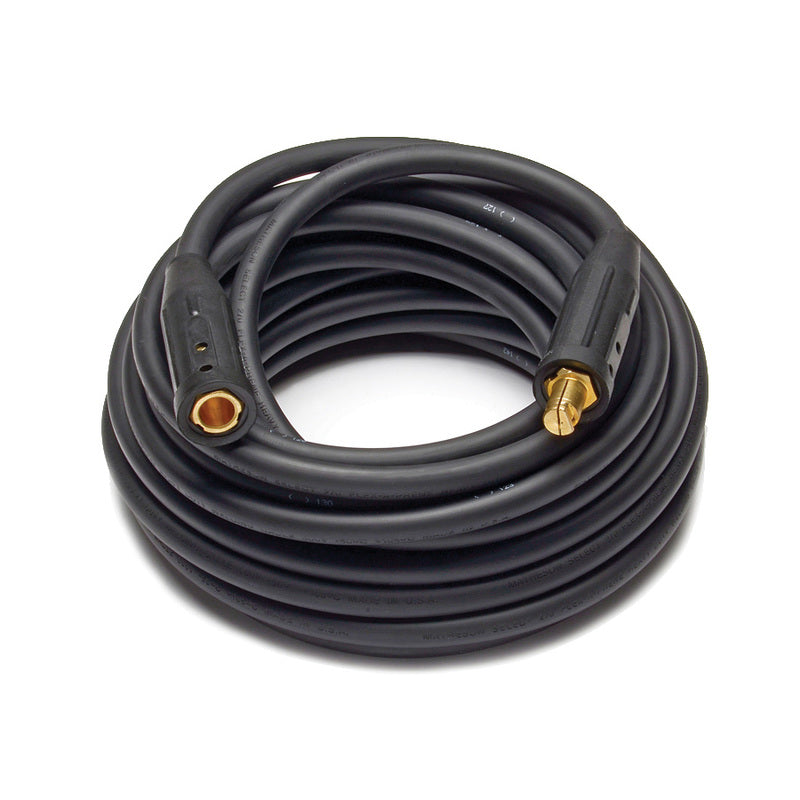

2/0 AMP Welding W/ Lenco Stinger Male Connector 300 AMP Cable

Applications:

The electrical cable is used in secondary voltage resistance welding leads and in power supply applications not exceeding 600 volts. The temperature range of the electrical cable is -50ºC to +105ºC.

Also Known As:

2/0 Gauge Welding Lead, 2/0 AWG Welders Lead, 2/0 Temporary Power Cable, 2/0 Flexible Power Cable, 2/0 Welder's Cable

Standards:

• RoHS Compliant

Construction:

Conductor:

Fully annealed stranded bare copper

Ground Clamp:

Lenco and Tweco A-532 Stinger - 300 AMPS

Connectors:

Lenco and Tweco 2MPC Male Connector

Jacket:

EPDM jacket. Black, blue, green, red, yellow colors available.

Specification:

• AWG Size: 2/0
• Conductor Strand: 1,235/0.010
• Outside Diameter: 0.591 Inches
• Weight: 0.007 lbs

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
