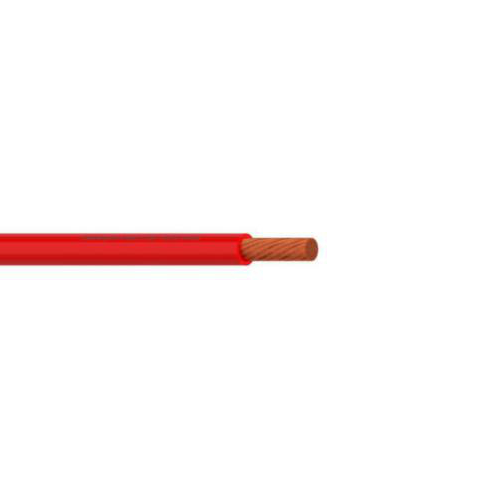

10 AWG 1C 105 Stranded Electric And Hybrid Vehicle TC Exrad FX SAE J-1127 150C 600V Battery Cable

10 AWG 1C 105 Stranded Electric And Hybrid Vehicle TC Exrad FX SAE J-1127 150C 600V Battery Cable
Roll over image to Zoom
10 AWG 1C 105 Stranded Electric And Hybrid Vehicle TC Exrad FX SAE J-1127 150C 600V Battery Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU:
electric-and-hybrid-vehicle-stranded-tinned-copper-exrad-fx-sae-j-1127-150c-battery-cable

Select a Gauge

10 AWG 1C 105 Stranded Electric And Hybrid Vehicle TC Exrad FX SAE J-1127 150C 600V Battery Cable
Price:
$0.00 /Qty
$0.00 /Qty
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

10 AWG 1C 105 Stranded Electric And Hybrid Vehicle TC Exrad FX SAE J-1127 150C 600V Battery Cable

Allowable Ampacity for 10 AWG 1C 105 Stranded Electric And Hybrid Vehicle TC Exrad FX SAE J-1127 150C 600V Battery Cable: 100 Amps

Also Known as:

Bare Copper Cable, Unshielded Cable, Stranded Cable, Exrad Fx Insulated Cable, Electric & Hybrid Vehicle Battery Cable

Description:

EV/Hybrid vehicle battery cables are designed specifically to handle the higher voltage and electrical currents required by today’s hybrid and battery powered vehicles.

Specifications:

Gauge Size: 10
No of Conductors: 1
Stranding: 105
Conductor Metal: BARE COPPER
Conductor Shielding Type: UNSHIELDED
Conductor Type: STRANDED
Insulation Material: EXRAD FX
Jacket Material: NONE
Specification(s): SAE J-1127
Overall Shielding Type: UNSHIELDED
Temperature: 150C
Voltage: 600V
IEWC Part: EXRAD10-FX-1
Manufacturer: Champlain Cable
Manufacturer Part: 15-07277-009


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
