Product Information

Specification

Allowable Ampacity for 1-1/4" Trade Non-UL Type LSZH-VF Liquid Tight Flexible Metal Conduit TPU Jacket: 100 Amps

Applications:

• Wherever limiting toxic material of combustion is needed
• 600 volt and lower circuits

Also Known As:

Type Non-UL, Type LSZH-VF, Metal Conduit, Flexible Conduit, TPU Jacket, Liquid Tight Conduit, Low smoke Conduit, 6755-24-00 AFC, 6755-40-00 AFC.

About:

• Flame retardant TPU jacket
• Low smoke, zero halogen raceway
• Low toxicity generation characteristics
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature ratings
• Black thermoplastic polyurethane jacket
• Sunlight resistant

Construction:

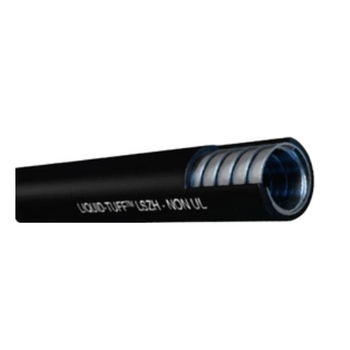

The LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit is constructed from a zinc-coated, galvanized low-carbon steel strip with consistent width and thickness. Its Low Smoke Zero Halogen (LSZH) designation is validated through testing to ASTM 162 (Flame Spread Index), ASTM E662 (Smoke Density Generation), and Bombardier SMP-800C (Toxic Gas Generation). The final dimensions comply with Table 3 specifications.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oil resistant
• –40°C

Specification:

• Trade Size: 1-1/4" inch
• Coil Length: 50ft
• Reel Length: 200ft
• Weight: 0.5985 lbs/ft
• Bend Radius: 8 inch
• Min Average Thickness Of Jacket: 0.035 Inch
• Internal Diameter Min: 1.380 inch
• Internal Diameter Max: 1.410 inch
• External Diameter Over Jacket Min: 1.630 inch
• External Diameter Over Jacket Max: 1.660 inch
• Part Number: 6755-24-00
• Part Number: 6755-40-00

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
