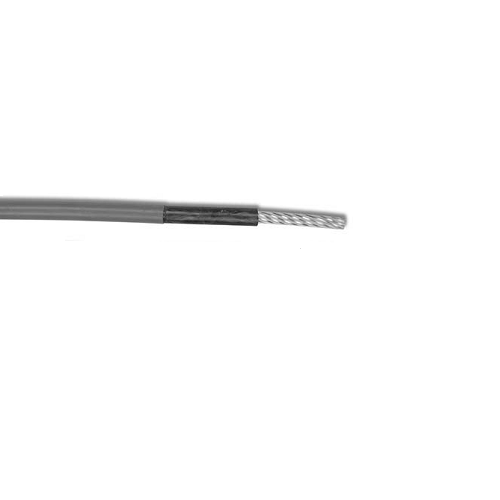

8 AWG 133/29 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-8

Name: 8 AWG 133/29 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-8
Brand: Nassau National Cable
SKU: 8-awg-133-29-stranded-nickel-coated-copper-fep-polyimide-fep-tape-200-c-600v-aerospace-cable-m81381-12-8
Availability: InStock
Rating: 4.92 (8178 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

8 AWG 133/29 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-8

Min Length: 1 FT

Max Length: 10000 FT

Price:

Precio habitual: $0.00 /FT
Precio de oferta: $0.00 /FT

Los gastos de envío se calculan en la pantalla de pagos.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

8 AWG 133/29 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-8

Allowable Ampacity for 8 AWG 133/29 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-8: 100 Amps

Applications:

• Aerospace applications, where a high-temperature rating and resistance to abrasion and solvents is necessary. This specification is highly reliable and offers excellent thermal stability.

Also Known as :

M81381/12 Cable, Military Wire, Polyimide Cable, FEP Cable, Silver Coated Copper Cable, Mil-Spec cable, Aerospace Cable

Description :

• Stranded nickel-coated copper
• Two layers of (FEP / polyimide / FEP tape) with a polyimide coating, color-coded
• Temperature rating: 200°C
• Voltage rating: 600 volts

Specification :

• AWG: 8
• Stranding: 133/29
• Nom. Diameter of Conductor: 0.163 inches
• Nom. O.D: 0.197 inches
• Weight: 0.0630 lbs
• Part Number: M81381/12-8

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
