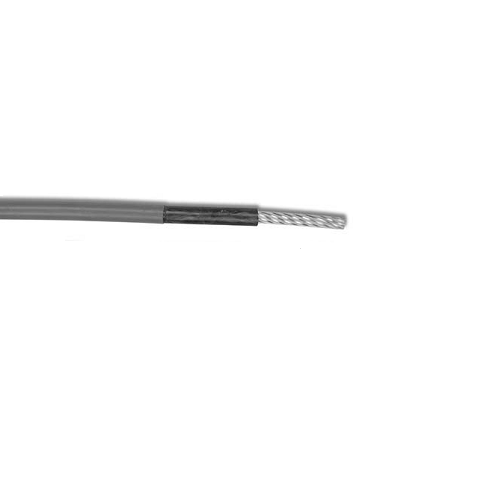

10 AWG 37/26 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-10

10 AWG 37/26 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-10

Allowable Ampacity for 10 AWG 37/26 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/12-10: 100 Amps

Applications:

• Aerospace applications, where a high-temperature rating and resistance to abrasion and solvents is necessary. This specification is highly reliable and offers excellent thermal stability.

Also Known as :

M81381/12 Cable, Military Wire, Polyimide Cable, FEP Cable, Silver Coated Copper Cable, Mil-Spec cable, Aerospace Cable

Description :

• Stranded nickel-coated copper
• Two layers of (FEP / polyimide / FEP tape) with a polyimide coating, color-coded
• Temperature rating: 200°C
• Voltage rating: 600 volts

Specification :

• AWG: 10
• Stranding: 37/26
• Nom. Diameter of Conductor: 0.109 inches
• Nom. O.D: 0.125 inches
• Weight: 0.0326 lbs
• Part Number: M81381/12-10
