HELUKABEL INDUSTRIAL ETHERNET CABLE
Select a Gauge
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
| Product Name | Length | Price (Per FT.) | Action | |
|---|---|---|---|---|
 |
Product Name
22 AWG 4C Helukat 800655 PROFInet C CAT 5e SF/UTP PUR CHAIN Industrial Ethernet cable |
Length
/FT
|
Price (Per FT.)
$1.84 |
Action
|
 |
Product Name
26 AWG 4P Helukat 82839 100S CAT 5e 30 V 4P SF/UTP PUR CHAIN Industrial Ethernet Green Cable |
Length
/FT
|
Price (Per FT.)
$1.99 |
Action
|
|
Product Name
26 AWG 4P Helukat 11021879 100S CAT 5e 30 V 4P SF/UTP PUR CHAIN Industrial Ethernet Yellow Cable |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
 |
Product Name
26 AWG 4P Helukat 803387 250S CAT6 CMX SF/UTP PUR CHAIN Industrial Ethernet Green Cable |
Length
/FT
|
Price (Per FT.)
$2.39 |
Action
|
|
Product Name
26 AWG 4P Helukat 805548 500S CAT 6A SF/FTP SLIM PUR CHAIN Industrial Ethernet Green Cable |
Length
/FT
|
Price (Per FT.)
$3.59 |
Action
|
HELUKABEL INDUSTRIAL ETHERNET CABLE
Applications:
HELUKAT PROFInet C CAT.5e SF/UTP PUR CHAIN for use on moving parts and in cable carriers. The cable listed here correspond to the PROFInet classifications Type C for moving cables and is designed to withstand mechanical loads. This PUR version has UL CMX listing and offers higher values in chain and chemical resistance.
Also Known As:
Helukabel ethernet cable, Helukabel industrial ethernet, Helukabel Cat6 cable, Helukabel Profinet cable, Helukabel Cat5e cable, Helukabel data cable, Helukabel network cable, Helukabel high flex ethernet, Helukabel shielded ethernet, Helukabel automation cable.
Technical Data:
Industrial Ethernet cable / Cat. 5e acc. to ISO/IEC 11801, DIN EN 50173, IEC 61156-6, PROFInet Guidline, UL-Std. 444 (CMX), CSA-Std. C22.2 No. 214 - CMX
Temperature range
flexible -30°C to +75°C
fixed installation -40°C to +80°C
Peak operating voltage
UL (CMX) to +75°C Peak operating voltage 125 V (not for high power current installation purposes)
Test voltage core/core
2500 V
Conductor resistance at 20°C
max. 58.6 Ohm/km
Loop resistance at 20°C
max. 117.1 Ohm/km
Insulation resistance
min. 5.0 GOhm x km
Mutual capacitance core/core
at 800 Hz, approx. 50 pF/m
Rel. Velocity of Propagation
approx. 66%
Characteristic impedance
at 1 to 100 MHz, 100 Ohm ± 15 Ohm
Caloric load
approx. 0.85 MJ/m
Minimum bending radius
flexible 12x Outer-Ø
fixed installation 4x Outer-Ø

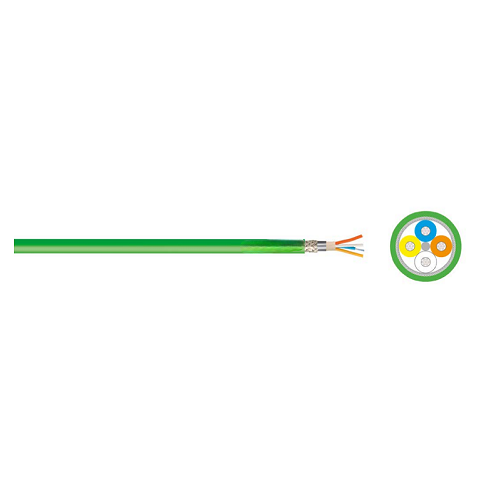

Cable Structure:
• Copper wire bare, AWG sizes
• Core insulation: PE
• Core identification: white, yellow, blue, orange
• Cores twisted into a star quad with optimal lay lengths
• Foil wrapping
• Inner sheath: halogen-free, flame retardant compound (FRNC)
• 1. Screen: plastic-coated aluminium foil (St)
2. Screen: braided screen of tinned copper wires
• Outer sheath: PUR
• Sheath colour: green
• Length marking: in meters
Properties:
• resistant to: oil, UV radiation, hydrolysis, microbes, coolants, greases
• abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
• suitable for use in drag chains
• halogen-free
• flame-retardant
Tests:
• halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
• certifications and approvals: EAC
Notes:
• Conductor sizes are based on the AWG measurement system, metric conductor sizes (mm²) are approximated and are for reference only
