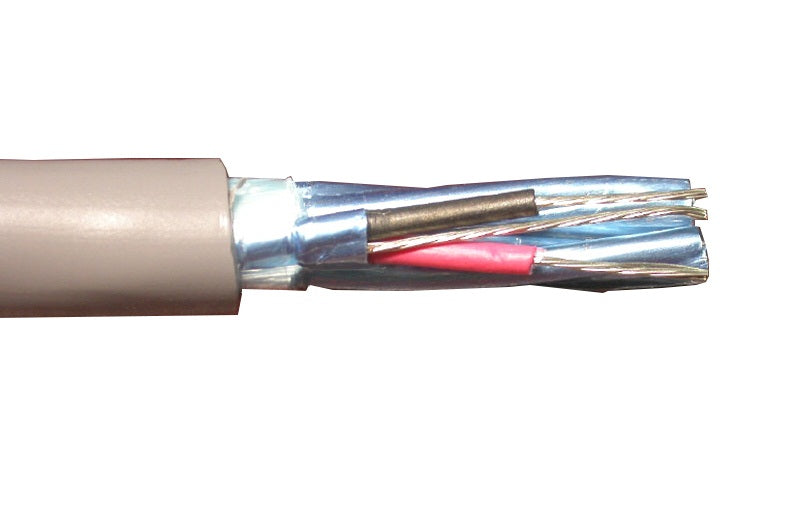

Alpha Wire Multi Pair Individually Foil Shielded FPP Insulation 300V Communication and Control Cable
Select a Gauge
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
| Product Name | Length | Price (Per FT.) | Action | |
|---|---|---|---|---|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$3.49 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$5.57 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$7.35 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$2.30 |
Action
|
Product Information
Specification
Communication and Control 300V Individually Foil Shielded Pairs or Overall Foil Shielded, Multipair, FPP, PVC
UL AWM 2490, 2493, 2668 VW-1 UL CM CSA CMG FT4
Operating Temperature:
• -20°C to +75°C (CM)
• -20°C to +60 (AWM, CMG)
Conductor Color Coding:
• Chart K (page 529)
Materials:
• Solid or stranded tinned copper conductors
• Foam polypropylene insulation
• Individual aluminum/polyester foil shield, 25% overlap min. Foil facing inward Stranded tinned copper drain wire, 24 AWG (0.23 mm2), 7/32 (7 x 0.20 mm)
• Slate PVC jacket (unless otherwise noted)
Availability:
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
