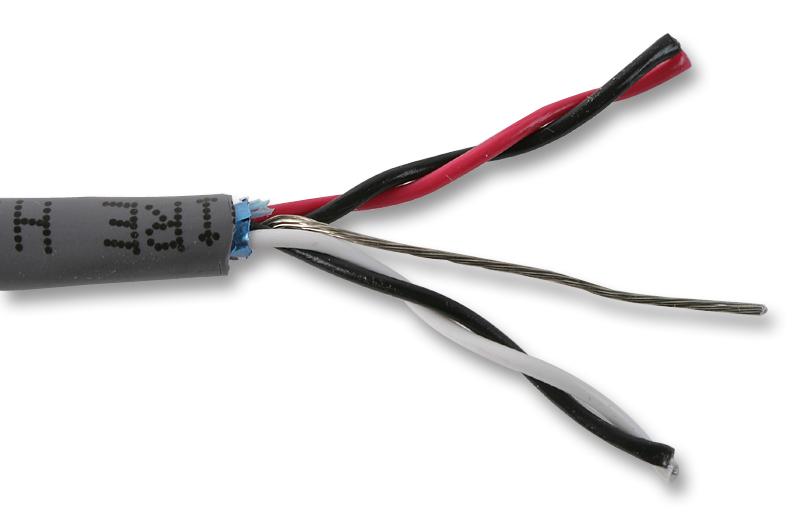

Alpha Wire Multi Pair Foil Shield PVC Insulation 300V Communication and Control Cable
Select a Gauge
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
| Product Name | Length | Price (Per FT.) | Action | |
|---|---|---|---|---|
 |
Product Name
Alpha Wire 5902C 22 AWG 2 Pair Foil Shield PVC Insulation 300V Communication and Control Cable |
Length
/FT
|
Price (Per FT.)
$3.00 |
Action
|
 |
Product Name
Alpha Wire 5906C 22 AWG 6 Pair Foil Shield PVC Insulation 300V Communication and Control Cable |
Length
/FT
|
Price (Per FT.)
$3.29 |
Action
|
 |
Product Name
Alpha Wire 5909C 22 AWG 9 Pair Foil Shield PVC Insulation 300V Communication and Control Cable |
Length
/FT
|
Price (Per FT.)
$4.58 |
Action
|
 |
Product Name
Alpha Wire 5909/15C 22 AWG 15 Pair Foil Shield PVC Insulation 300V Communication and Control Cable |
Length
/FT
|
Price (Per FT.)
$6.80 |
Action
|
 |
Product Name
Alpha Wire 5909/19C 22 AWG 19 Pair Foil Shield PVC Insulation 300V Communication and Control Cable |
Length
/FT
|
Price (Per FT.)
$11.23 |
Action
|
Product Information
Specification
Communication and Control 300V Overall Foil Shield, Multipair, PVC, PVC
UL AWM 2464 VW-1 UL CM CSA CMG FT4
Operating Temperature:
• -20°C to +80°C (AWM)
• -20°C to +75°C (CM)
• -20°C to +60°C (CMG)
Conductor Color Coding:
• Chart K (page 529)
Materials:
• Solid tinned copper conductors
• PVC insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing inward Stranded tinned copper drain wire equal in size to conductor
• Slate PVC jacket
Availability:
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
