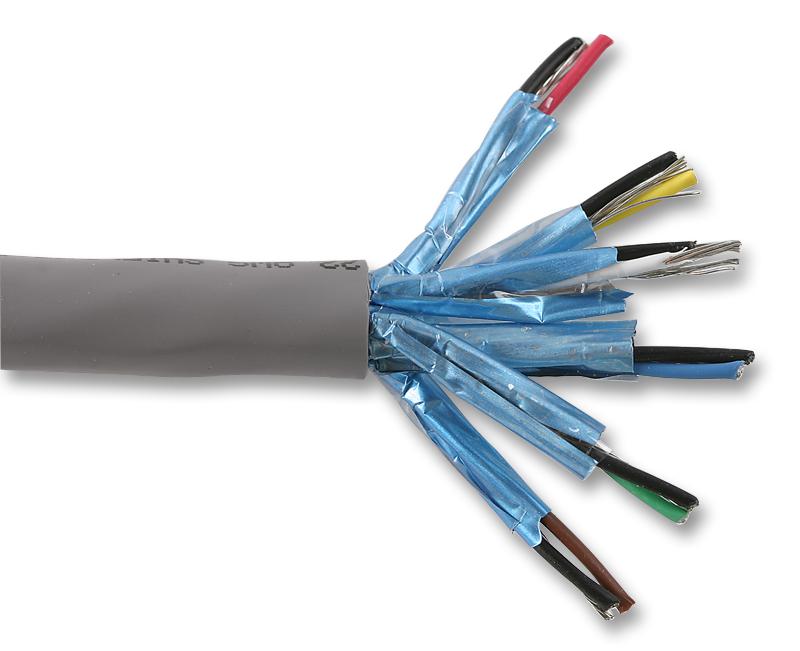

Alpha Wire Multi Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable

Name: Alpha Wire Multi Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable
Brand: Nassau National Cable
SKU: NNC21005X
Availability: InStock
Rating: 4.94 (7642 reviews)

Roll over image to Zoom

Alpha Wire Multi Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable

Write a Review

Ask a Question Download PDF

SKU: NNC21005X

Select a Gauge

Alpha Wire Multi Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable

Where are we? 4 Continents 8 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Name	Length	Price (Per FT.)	Action
Product Name Alpha Wire 57602 24 AWG 2 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $1.09 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 57603 24 AWG 3 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $1.70 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 57605 24 AWG 5 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $2.15 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 57606 24 AWG 6 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 58412 22 AWG 2 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $1.82 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 58413 22 AWG 3 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $2.59 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 58414 22 AWG 4 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $3.30 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 58416 22 AWG 6 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $5.18 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 58419 22 AWG 9 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $6.51 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 58420/19 22 AWG 19 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $10.70 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 57632 20 AWG 2 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $1.95 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 57634 20 AWG 4 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $2.90 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 57636 20 AWG 6 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $4.40 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 57628 22 AWG 8 Pair Foil 300V PPVC Insulation Plenum Communication and Control Cable	Length /FT	Price (Per FT.) $3.68 Available Min: 1 FT Max: 1000000 FT	Action

Product Information

Specification

Communication and Control 300/150 V Foil Shield, Multipair, PVC, PVC Plenum Rated

UL CL2P UL CMP CSA CMP FT6

Operating Temperature:

• -5°C to +75°C

Conductor Color Coding:

• Chart A1 (page 528)

Materials:

• Stranded bare copper conductors
• Plenum-rated PVC insulation
• Foil shield Aluminum/polyester foil shield, 25% overlap min. Foil facing outward Stranded tinned copper drain wire (see tables for size)
• Slate plenum-rated PVC jacket

Availability:

500 ft (152 m)
1000 ft (305 m)
