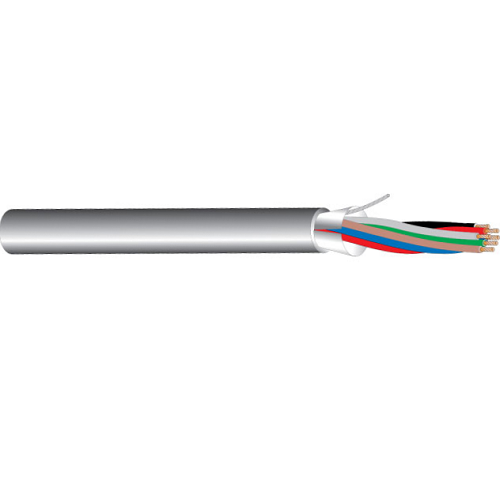

West Penn 3281 18 AWG 7C 7x26 Stranded BC Shielded Aluminum Foil TC CMR PVC Low Voltage Audio Communication Cable

Name: West Penn 3281 18 AWG 7C 7x26 Stranded BC Shielded Aluminum Foil TC CMR PVC Low Voltage Audio Communication Cable
Brand: West Penn Cable
SKU: 3281
Price: 1201.15 USD
Availability: InStock
Rating: 4.92 (8178 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: 3281

Select a Gauge

West Penn 3281 18 AWG 7C 7x26 Stranded BC Shielded Aluminum Foil TC CMR PVC Low Voltage Audio Communication Cable

Availability: In stock

Price:

Precio habitual: $1,201.15 /Qty
Precio de oferta: $1,201.15 /Qty

Los gastos de envío se calculan en la pantalla de pagos.

Free Shipping: On orders above $1000

Spool

Qty:

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

West Penn 3281 18 AWG 7C 7x26 Stranded BC Shielded Aluminum Foil TC CMR PVC Low Voltage Audio Communication Cable

Allowable Ampacity for West Penn 3281 18 AWG 7C 7x26 Stranded BC Shielded Aluminum Foil TC CMR PVC Low Voltage Audio Communication Cable: 100 Amps

Applications:

• Audio Circuits
• Division 27 51 00
• Division 28 05 13.16
• Low Voltage Power
• Access Control - Reader

Also Known as:

West Penn Cable, Audio Cable, Low Voltage Cable, Indoor Cable, Drain Wire, Indoor Audio Cable, Communication Cable, Audio Indoor Cable, West Penn 3281

Description:

• Overall PVC Jacket
• ASTM Bare Copper
• Cabled Construction
• Thermoplastic Insulation
• Overall Shield 100% Coverage of Aluminum Polyester Foil with 24 AWG Strd. Tinned Copper Drain Wire

Construction:

• Conductor Type: Bare copper
• Insulation Type: Thermoplastic
• Jacket Type: PVC
• Shield Type: Overall 100% Aluminum Foil
• Drain Wire Type: Tinned Copper
• NEC UL Rating: CMR, CMG
• UL Flammability: UL1666 Vertical Shaft
• CSA Flammability: FT4
• Operating Range: -20 to 60 Deg C
• UL Voltage Rating: 300V

Rating:

• NEC Type CMR
• (UL)-C(UL) Listed
• Flame Rating: UL1666
• Meets 300V Requirements as Specified in the NEC

Specification:

• AWG Size: 18
• Number of Conductors: 7
• Conductor Stranding: 7x26
• Drain Wire AWG: 24
• Nominal DCR: 6.2 Ohm/1000ft
• Insulation Thickness: 0.008 Inch
• Jacket Thickness: 0.017 Inch
• Nominal Cable O.D: 0.23 Inch
• Pull Tension: 165 lbs
• Bend Radius: 2.07 Inch
• Weight (1000 ft): 61 lbs
• Part Number: 3281

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
