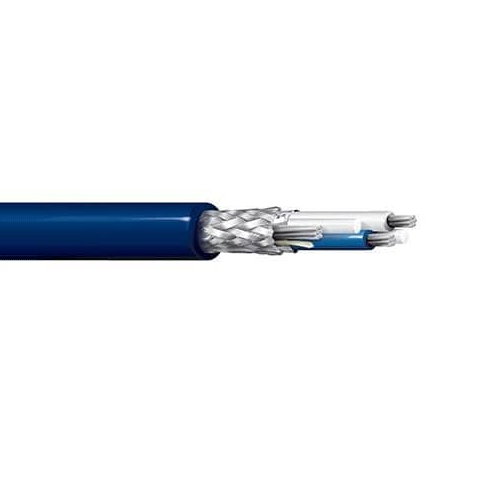

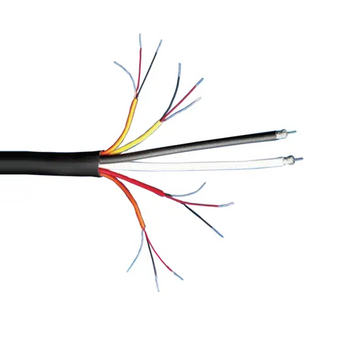

Belden 5788AV 25 AWG 5C Stranded Tinned Copper Al Foil Foam PE PVC Composite Coaxial Cable

Name: Belden 5788AV 25 AWG 5C Stranded Tinned Copper Al Foil Foam PE PVC Composite Coaxial Cable
Brand: IEWC Cable
SKU: belden-5788av-25-awg-5c-stranded-tinned-copper-al-foil-foam-pe-pvc-composite-coaxial-cable
Availability: InStock
Rating: 4.92 (8245 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

Belden 5788AV 25 AWG 5C Stranded Tinned Copper Al Foil Foam PE PVC Composite Coaxial Cable

Price:

Precio habitual: $0.00 /Qty
Precio de oferta: $0.00 /Qty

Los gastos de envío se calculan en la pantalla de pagos.

Free Shipping: On orders above $1000

Size

Qty:

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 5788AV 25 AWG 5C Stranded Tinned Copper Al Foil Foam PE PVC Composite Coaxial Cable

Allowable Ampacity for Belden 5788AV 25 AWG 5C Stranded Tinned Copper Al Foil Foam PE PVC Composite Coaxial Cable: 100 Amps

Also Known as:

Commercial Cable, Coaxial Cable, Composite Cable, Audio Cable, Video Cable, Belden Cable

Description:

Composite cables carry standard definition analog video over a single line-level signal. They are frequently confused with the multiple channel Component cable, but neither carry audio signals unless paired.

Specifications:

Gauge Size: 25
Stranding: 7
No. of Conductors: 5
Armor Type: None
Coax Construction: Coaxial
Conductor Diameter: 0.018"
Conductor Metal: Tinned Copper
Conductor Shielding Type: Not Specified
Conductor Type: Stranded
Impedence: 75 OHMS
Insulation Material: FOAM PE
Jacket Material: PVC
Overall Shielding Type: Al Foil/Polyester Tape/Al Foil
Supplier Series: 5788AV
Temperature: Not Specified
IEWC Part: 32040003
Manufacturer: Belden

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
