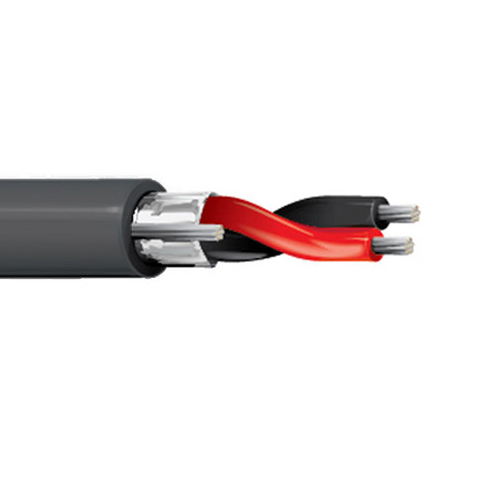

Belden 5000U1 12 AWG 2C Stranded Tinned Copper Unshielded Waterblocking Tape PVC Electronic Cable
Allowable Ampacity for Belden 5000U1 12 AWG 2C Stranded Tinned Copper Unshielded Waterblocking Tape PVC Electronic Cable: 100 Amps
Also Known as:
Electronic Cable, Multi Conductor Cable, Audio Cable, Multi Pair Cable, Speaker Cable, Belden Cable
Description:
Multi-conductor cables generally carry audio, control, and instrumentation signals via a wide array of options. Multi-conductor cables are very similar to multi-pair cables, differentiated by the pair qualification.
Specifications:
Gauge Size: 12
Stranding: 19x25
No. of Conductors: 2
Armor Type: None
Conductor Configuration: Conductors
Conductor Metal: Bare Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: PP
Jacket Material: PVC
Overall Shielding Type: Unshielded
Specification(s): NEC CL3R
Temperature: 105C
Voltage: 300V
IEWC Part: 32039816
Manufacturer: Belden
Manufacturer Part: 5000U1 0081000
