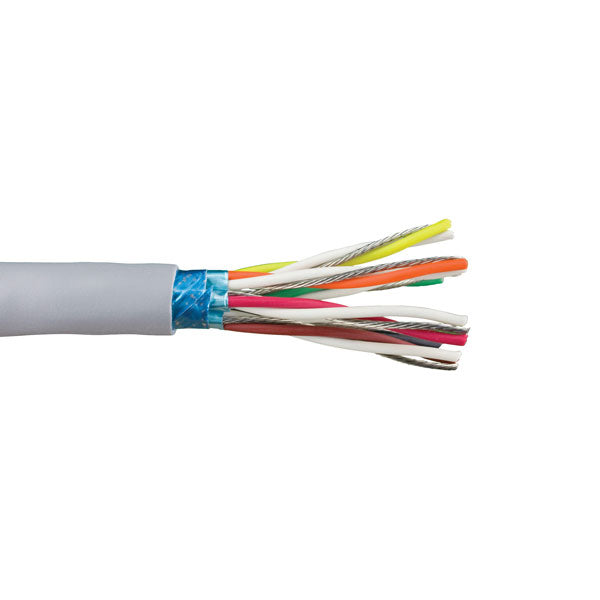

Alpha Wire Multi Pair 300V Foil Braid Shield MPPE Insulation ECOGEN Cable

Name: Alpha Wire Multi Pair 300V Foil Braid Shield MPPE Insulation ECOGEN Cable
Brand: Nassau National Cable
SKU: NNC16535X
Availability: InStock
Rating: 4.93 (7753 reviews)

Roll over image to Zoom

Alpha Wire Multi Pair 300V Foil Braid Shield MPPE Insulation ECOGEN Cable

Write a Review

Ask a Question Download PDF

SKU: NNC16535X

Select a Gauge

Alpha Wire Multi Pair 300V Foil Braid Shield MPPE Insulation ECOGEN Cable

Where are we? 4 Continents 8 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Name	Length	Price (Per FT.)	Action
Product Name Alpha Wire 78352 28/2 28 AWG 2 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $3.89 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78353 28/3 28 AWG 3 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $4.45 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78354 28/4 28 AWG 4 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $4.99 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78356 28/6 28 AWG 6 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $6.22 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78358 28/8 28 AWG 8 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $7.26 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78362 26/2 26 AWG 2 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $3.98 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78363 26/3 26 AWG 3 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $4.58 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78364 26/4 26 AWG 4 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $5.22 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78366 26/6 26 AWG 6 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $5.87 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78368 26/8 26 AWG 8 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $8.11 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78372 24/2 24 AWG 2 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $4.19 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78373 24/3 24 AWG 3 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $4.89 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78374 24/4 24 AWG 4 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $5.51 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78376 24/6 24 AWG 6 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $7.31 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78378 24/8 24 AWG 8 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $7.69 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78428 24/20 24 AWG 20 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $14.47 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78458 24/25 24 AWG 25 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $18.59 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78382 22/2 22 AWG 2 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $5.06 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78383 22/3 22 AWG 3 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $5.89 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78384 22/4 22 AWG 4 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $7.01 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78386 22/6 22 AWG 6 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $8.99 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78388 22/8 22 AWG 8 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $10.77 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78392 20/2 20 AWG 2 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $5.56 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78393 20/3 20 AWG 3 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $6.92 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78394 20/4 20 AWG 4 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $8.44 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78345 20/5 20 AWG 5 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $9.45 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78396 20/6 20 AWG 6 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $11.35 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78398 20/8 20 AWG 8 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $13.09 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 78349 20/9 20 AWG 9 Pairs 300V Foil Braid Shield MPPE Insulation ECOGEN Cable	Length /FT	Price (Per FT.) $14.45 Available Min: 1 FT Max: 1000000 FT	Action

Product Information

Specification

Configurations:

• Multiconductor or multipair
• 28-20 AWG
• Unshielded, foil shielded, individually shielded pairs + overall foil shield, and Supra-Shield® foil + braid
• Custom and composite configurations available

Materials:

• Conductors: Tinned copper
• Insulation: mPPE
• Shielding: Foil
• Jacket: mPPE

Temperature Range:

• -40°C to +80°C

Voltage Rating:

• 300 V

Properties:

• Zero halogen
• Specific gravity: 1.03
• 100% recyclable
• Low outgassing

Approvals:

• UL AWM 21460
• CE
• CSA I A/B FT1
• RoHS
• REACH
• WEEE
• Suitable for use in NFPA 79 applications
• Meets UL VW-1 flame rating

Availability:

• 100 ft (30.5 m) and 1000 ft
(305 m) lengths
• Bulk
