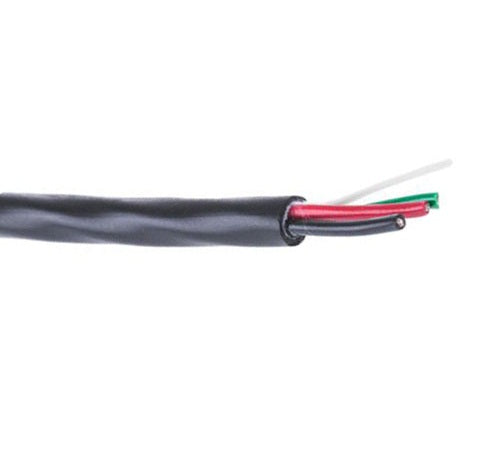

Alpha Wire 25196 22/6 22 AWG 6 Conductors Foil 300V Xtra Guard-2 Abrasion Resistant PUR Cable
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
| Conductor Count | 6 CONDUCTORS |
| Conductor Material | TINNED COPPER |
| Conductor Size | 22 AWG (AMERICAN WIRE GAUGE) |
| Conductor Type | STRANDED CONDUCTOR |
| Fire Rating | GENERAL PURPOSE |
| Insulation Material | SRPVC-SEMI-RIGID PVC |
| Jacket Material | PUR-POLYURETHANE |
| Screen/Shield Type | FOIL SHIELDED - ALUM/MYLAR |
| Screen/Shield | YES |
| Shield Construction | OVERALL SHIELD & DRAIN |
| UNSPSC Code | 26121524 |
|
Manufacturer Equivalents |
|
| Alpha Wire : | Black : 25196 BK199 |
| Anixter : | Black : 25196 BK199 |
| Wirexpress : | Black : A25196 |
Applications:
Alpha Wire Xtra-Guard 2 is a heavy-duty cable for use in industrial applications where abrasion and mechanical abuse is common.
Tech Info:
• CA Prop 65
• CE
• CSA AWM I_II A_B
• CSA FT1
• UL AWM 1569
• UL AWM 20668
• UL VW-1
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
