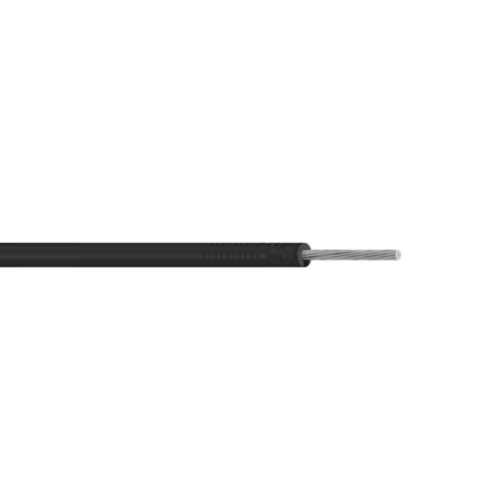

4/0 AWG 1C 2109 Strand Tinned Copper Unshielded UL 3575 XLPE 150C 7.5KV Hook-Up Lead Wire
Allowable Ampacity for 4/0 AWG 1C 2109 Strand Tinned Copper Unshielded UL 3575 XLPE 150C 7.5KV Hook-Up Lead Wire: 100 Amps
Also Known as:
High Temperature Cable, High Voltage Cable, UL 3575 Cable, Hook-up Cable, Lead Cable, XLPE Cable
Description:
UL 3575 XLPE insulated hook-up wire is used for the internal wiring of appliances or motor leads. Rated for 150C and 7500VAC.
Specifications:
Gauge Size: 4/0
Stranding: 2109
No. of Conductors: 1
Armor Type: None
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: XLPE
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): UL 3575
Temperature: 150C
Voltage: 7.5kV
IEWC Part: 3575/4/0T2109-0-CH
Manufacturer: Approved Manufacturer
Vendor: Champlain Cable
Part Number: 25-17503-005
