2 Cores 1.5 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free Cable

Name: 2 Cores 1.5 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free Cable
Brand: Nassau National Cable
SKU: 2-cores-1-5-mm-rfou-0-6-1kv-low-voltage-power-lighting-flame-retardant-halogen-free-cable
Availability: InStock
Rating: 4.92 (8154 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

2 Cores 1.5 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free Cable

Min Length: 1 FT

Max Length: 10000 FT

Price:

Precio habitual: $0.00 /FT
Precio de oferta: $0.00 /FT

Los gastos de envío se calculan en la pantalla de pagos.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

2 Cores 1.5 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free Cable

Allowable Ampacity for 2 Cores 1.5 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free Cable : 100 Amps

Also Known As :

RFOU 0.6/1KV Cable, Flame Retardant Cable, Halogen Free Cable, Marine Shipyard Cable, Marine Cable, Offshore Cable, Low Voltage Power Cable

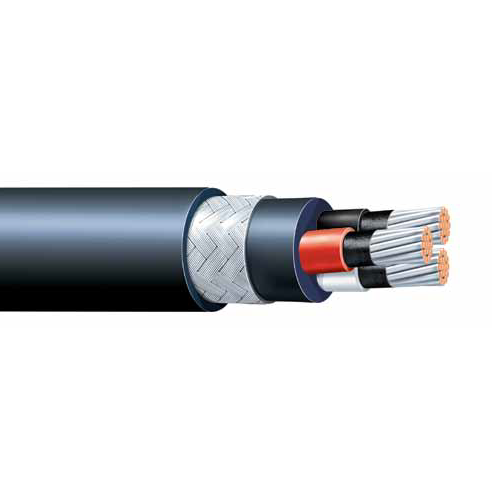

Construction :

• Conductor : Stranded Tinned Annealed Copper Wires As Per IEC 60228, Class 2

• Insulation : - Code - R
- EPR as per IEC 60092-360

• Cabling : - Flame Retardant & Non-hygroscopic Fillers May Be Used
- Suitable Tape(S) May Be Applied On The Cabled Core
- A Filler May Be Applied To Obtain A Circular Cable

• Inner Covering : - Code F
- Flame Retardant Halogen Free Thermoset Compound

• Armor : - Code O
- Braid Of Tinned Copper Wire (O) / Bronze Wire (B) / Galvanized Steel Wire (C)
- Code (B,C)
- A Suitable Separator Tape(S) May Be Applied Under/Over The Armor

Sheath : - Code U
- SHF2 As Per IEC 60092-360
- Option : NEK 606 Category A,B,C,D Mud Or Oil Resistant
- Outer Sheath Color : Black

Core Identification :

No. Of cores	Without Earth Core	With Earth Core
1C	Off-White or BIack	-
2C	Off-White, BIack	-
3C / 2C + E	Off-White, BIack, Red	Off-White, BIack, G/Y
4C / 3C + E	Off-White, BIack, Red, BIue	Off-White, BIack, Red, G/Y
5C / 4C + E	BIack No. On White InsuIation	Off-White, BIack, Red, BIue, G/Y
6C and over	BIack No. On White InsuIation	BIack No. On white InsuIation, G/Y

Application Standards :

• Design Guide : NEK-606 & IEC 60092-353
• Flame Retardant : IEC 60332-1 & IEC 60332-3 Category A
• Halogen Content : IEC 60754-1, 0.5%
• Cold Bend / Impact : CSA C22.2 No. 2556 Or IEC 60092-350 Annex.E Method 1 (-40ºC/-35ºC)
• Mud / Oil Resistant : NEK 606 (Category A,B,C,D)
• Smoke Light Transmittance : IEC 61034, 60%
• Sunlight (UV) Resistant : UL 1581

Specification :

• No of Cores : 2 Core
• Conductor Nominal Area : 1.5 mm²
• Conductor Min. No. Of Wires : 7 EA
• Conductor Max.Over All Dia : 1.7 mm
• Thickness of Insulation : 1.0 mm
• Thickness of Inner Covering : 1.0 mm
• Nominal Dia. Inner Covering : 9.2 mm
• Dia. of Wire for Armour : 0.3 mm
• Thickness of Sheath : 1.2 mm
• Overall Diameter Nominal : 13.1 mm
• Overall Diameter Tolerance: 0.8 ±mm
• Conductor Resistance (at 20°C) (Max.) : 12.2 Ω/km
• Insulation Resistance (at 20°C) (Min.) : 1320 MΩ-km
• Test Voltage : 3,500 V/5min
• Cable Weight : 0.205 Lbs/Ft
