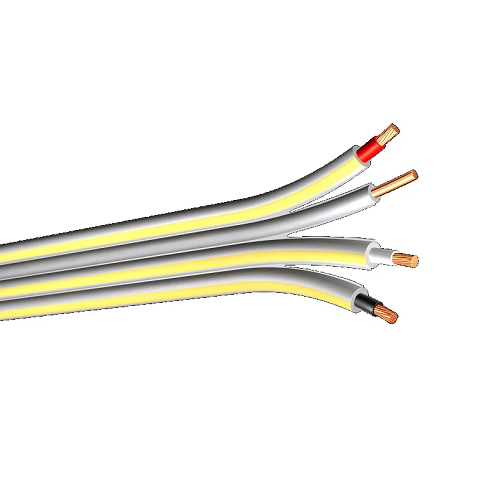

14/3 W/G Stranded Rip-N-Strip Duckt-Strip Ductless Mini Split AC Cable 600V

14/3 W/G Stranded Rip-N-Strip Duckt-Strip Ductless Mini Split AC Cable 600V

Application:

• From the Mini-Split outdoor condensing unit to the indoor unit. Power and Control in 1 cable.
• 14/4 (14/3 w/grd) Stranded Conductors
• 75 °C Jacket, 90 °C Conductors, at least 60 °C Wet Locations

Also Known As:

14/3 W/G Duck Strip Rip N mini split cable, Mini split cable 600V, 600V HVAC cable, Mini split power cable, Rip N Strip mini split wire, Duck Strip 600V cable, Mini split installation cable, 4 conductor mini split cable, 14/3 W/G Mini split AC wiring cable, 14/3 W/G UL listed mini split cable.

Innovations:

• Innovative Rip-N-Strip technology
• No blade required
• Safer
• One wire covers interior/exterior compliance

Standards & References:

Duckt-Strip meets the following standards and references:

•  Underwriters Laboratories Standard 493
• Underground Feeder UF-B
• Underwriters Laboratories Standard 2988
• Universal Hybrid Power and Signal/Control Cable
•  Made in Hooksett, New Hampshire USA

Construction:

The ONLY cable with complete end to end conductor isolation, as per NEC 725.136. UL and NEC approved for in the wall, through the wall installs. Jacket is constructed with Patented Rip-N-Strip grooves for easier separation of cables and removal of jacket.

Jacket:

Conductors are covered with a gray and yellow, sunlight resistant, outdoor rated, direct buried approved PVC jacket.
