Product Information
Specification

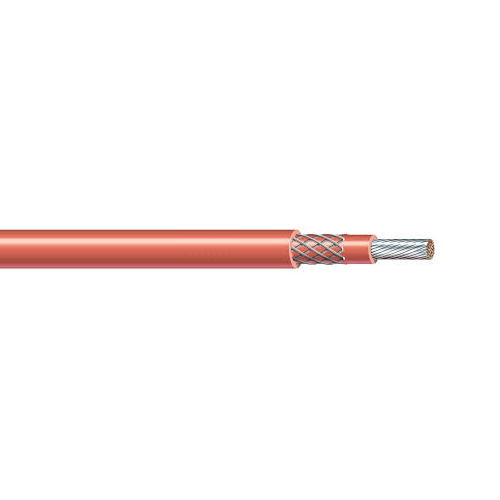

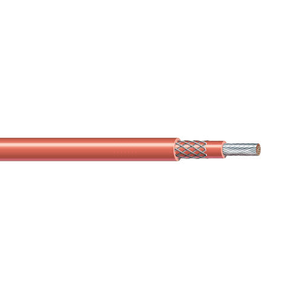

12 AWG 1C 65 Strand Nickel Plated Copper UL 3637 Silicone Fiberglass Braid 250C 600V Hook-Up Lead Wire

Allowable Ampacity for 12 AWG 1C 65 Strand Nickel Plated Copper UL 3637 Silicone Fiberglass Braid 250C 600V Hook-Up Lead Wire: 100 Amps

Also Known as:

High Temperature Cable, High Voltage Cable, UL 3637 Cable, Hook-up Cable, Lead Cable, Silicone Cable

Description:

UL 3637 silicone and glass braid insulated hook-up wire is used for the internal wiring of appliances where it is not exposed to mechanical damage or movement after installation. Rated for 250C and 600VAC.

Specifications:

Gauge Size: 12
Stranding: 65
No. of Conductors: 1
Armor Type: None
Conductor Metal: Nickel Plated Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: Silicone
Jacket Material: Fiberglass Braid/Silicone
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, UL 3637
Temperature: 250C
Voltage: 600V
IEWC Part: SIB12N65/3637-1
Manufacturer: Radix Wire
Manufacturer Part: NMA12P065-T01


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
