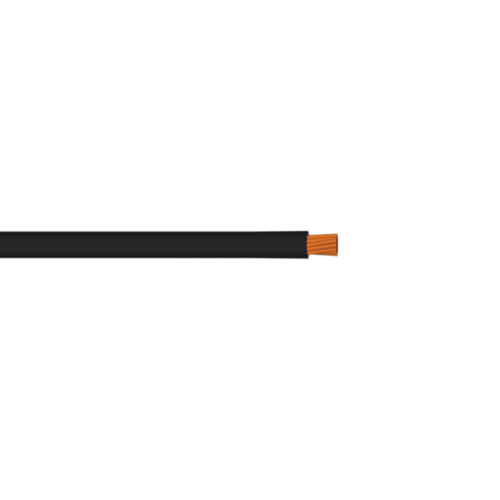

16 AWG 1C 19 Stranded Tinned Copper Unshielded PVDF-X 150C 60V Automotive Primary Wire

16 AWG 1C 19 Stranded Tinned Copper Unshielded PVDF-X 150C 60V Automotive Primary Wire

Allowable Ampacity for 16 AWG 1C 19 Stranded Tinned Copper Unshielded PVDF-X 150C 60V Automotive Primary Wire: 100 Amps

Also Known as:

Tinned Copper, Stranded Cable, Unshielded Cable, Primary Cable, PVDF-X Cable

Description:

Automotive primary wires that are insulated using extruded crosslinked Polyvinylidenfluorid, also known as PVDF-X, feature excellent resistance to high and low temperatures, oils, fuels, hydrolysis, abrasion, and solder irons. This type of primary wire, which also offers superb flame retardance and easy strip ability and processing, is typically used in road vehicle applications.

Specifications:

Gauge Size: 16
No. of Conductors: 1
Stranding: 19
Conductor Metal: Tinned Copper
Conductor Type: Stranded
Insulation Material: PVDF-X
Jacket Material: None
Specification(s): ISO 6722-1 CLASS D
Overall Shielding Type: Unshielded
Temperature: 150C
Voltage: 60V
IEWC Part: 32101870
Manufacturer: Huber+Suhner
Manufacturer Part: 000000000084099201
