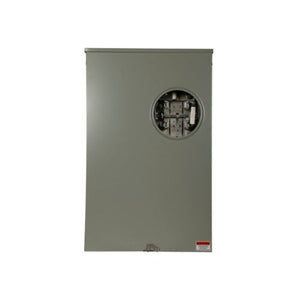

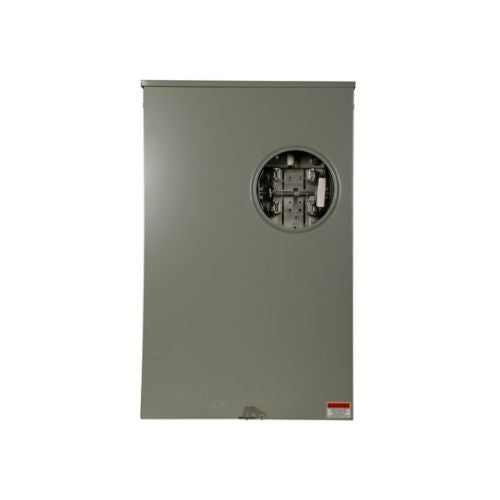

320A 600VAC Meter Pack With Lever Bypass 1009788ACH

A meter socket is a weatherproof enclosure that houses the electric meter and connects your service entrance conductors to the utility’s power lines. It allows the utility to measure your electricity usage and acts as a safe, secure interface between their system and your home’s wiring. Without it, your electric meter can’t function, and power can’t legally or safely be delivered to the home.

• Main breaker socket: Includes a built-in breaker for disconnecting service.
• Main lug socket: No breaker, just lugs for wire terminations; requires a separate disconnect.
• Ring-type socket: A locking ring is used to secure the meter (often required by utilities).
• Ringless socket: Holds the meter with clips; makes it easier to access for service.
• Overhead socket: Accepts power from overhead utility lines.
• Underground socket: Accepts power from underground service laterals.
• Bypass socket: Includes a mechanism to maintain service during meter removal.
• Multi-position socket: Allows for two or more meters in a single enclosure (e.g., apartments).

It's used in 400A services where the continuous load does not exceed 320 amps, which meets utility requirements in most residential and light commercial setups.

Signs for a replacement include burn marks, loose meter jaws, rust/corrosion, or cracked housing. Minor wear (like a worn cover or missing knockout plug) can be repaired, but internal damage or safety risks require full replacement.

Yes, a multi-gang meter socket allows each unit to have its own meter and separate billing.

Gang sockets combine multiple meters in one enclosure — neater and more cost-efficient for multi-unit buildings.

Yes, most utilities and codes require a separate disconnect for each meter position.

A bypass allows power to keep flowing when the meter is removed. This is useful during maintenance or meter replacement without shutting off electricity to the building.

Horn bypass has two metal prongs ("horns") where jumper cables are manually attached. This is common for residential or small-scale applications.

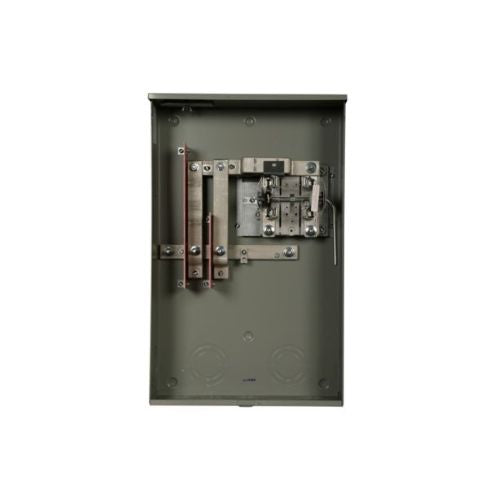

Lever bypass includes a built-in lever that activates the bypass internally. It is safer and faster for commercial applications with frequent service.

Match it to your service size—100A, 200A, 320A, or 400A.

30+ years with proper installation and no exposure to water, rust, or physical damage.

It protects internal components from the weather. Replace it if it is cracked or no longer seals properly.

Yes, if compatible, but full replacement is safer.

• Solar-ready: Includes space for a solar production meter or uses a socket adapter.
• Generator-ready: Has a bypass or interlock that allows generator connection when utility power is out.

Use the one that matches your utility’s net metering or backup power interconnection rules.

Only if rated and approved for the application.
