Product Information

Specification

Application:

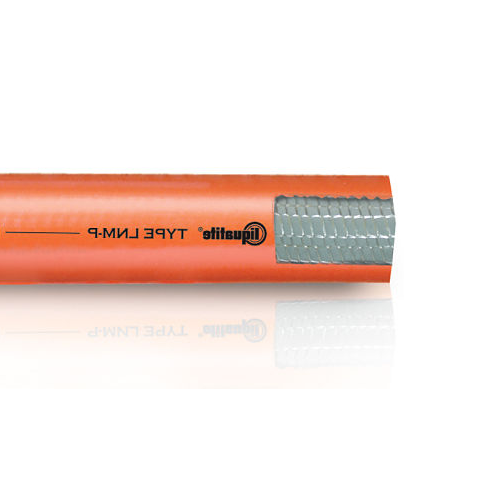

Type LNM-P is intended for installation in accordance with Article 356 of the NEC (ANSI/NFPA-70) for flexible liquidtight nonmetallic conduit (LFNC-A or FNMC-A).

• For containment of 1000 volt and lower potential circuits.
• Listed and marked for outdoor use.
• Installations in hazardous (classified) locations:
• Class I Div. 2 Article 501
• Class II Div. 1&2 Article 502
• Class III Div. 1&2 Article 503
• Electric signs and outdoor lighting over 1000 volts. Article 600.31(A)
• Wiring methods for pools and spas. Article 680

Conforms to the requirements of Section 14.5.5 of the electrical Standard for Industrial Machinery NFPA-79.

Also Known As:

Electri Flexible Conduits, Liquidtight Jacket, Type LNMP , Nylon Braid, Nonmetalli, Flexible Conduits, Flexible PVC

Fittings:

Fittings for layered conduit are for that conduit only and are so identified by the marking “FNMC-A” or “LFNC-A” for liquidtight flexible nonmetallic conduit Type A. 1/2″ straight examples include:

• Thomas & Betts (Steel) #3721 (Plastic) #6302
• Appleton Electric # STNM-50
• Kellems / Hubell # H050CNK

Packaging:

Coiled in cartons or in random lengths (minimum 50 feet) on non-returnable Reels.

Markets:

Machine Tool (OEM), Mining, Oil & Gas Refineries, Power Plants, Robotics, Steel Mills

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
