YMvKrvasmb Bare Copper Shield Copper Tape XLPE PVC 8.7/15kV Medium Voltage Cable

About:

This cable is designed for medium voltage applications, typically used in power distribution networks. The voltage rating of 8.7/15kV suggests it can handle applications where the voltage ranges from 8.7 kilovolts up to 15 kilovolts.

Also Known As:

• Medium Voltage XLPE Cable
• 8.7/15kV PVC Insulated Power Cable
• Copper Tape Shielded Electrical Cable

Application:

• Single core power cable with XLPE core insulation and PVC flame-retardant outer sheath. Suitable for fixed medium voltage installations. Application, for example, as a transformer connection cable in the voltage class 8.7/15kV.

• For load capacity conditions see NPR 3626 .

Standards:

• IEC (International Electrotechnical Commission) standards
• ANSI (American National Standards Institute) standards
• Specific regional standards depending on the area of use

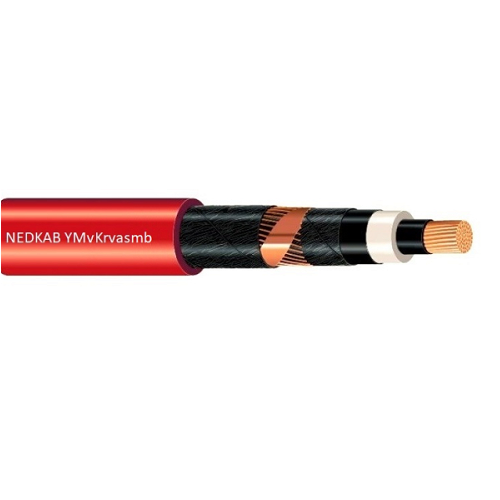

Construction:

• Conductor: round copper, class 2
• Insulation: XLPE (VPE)
• Insulation screen: Low-conductivity strippable compound with low-conductivity swelling tape
• Braiding: Round copper wire with copper tape in counter-spiral
• Outer sheath: flame-retardant polyvinyl chloride (PVC)

Features:

• High Voltage Endurance: Can operate efficiently in medium voltage ranges.
• Robust Insulation: XLPE provides excellent electrical insulation and longevity.
• EMI Protection: The copper tape shield minimizes electromagnetic interference.
• Durability: PVC sheathing offers protection against physical and environmental stress.
