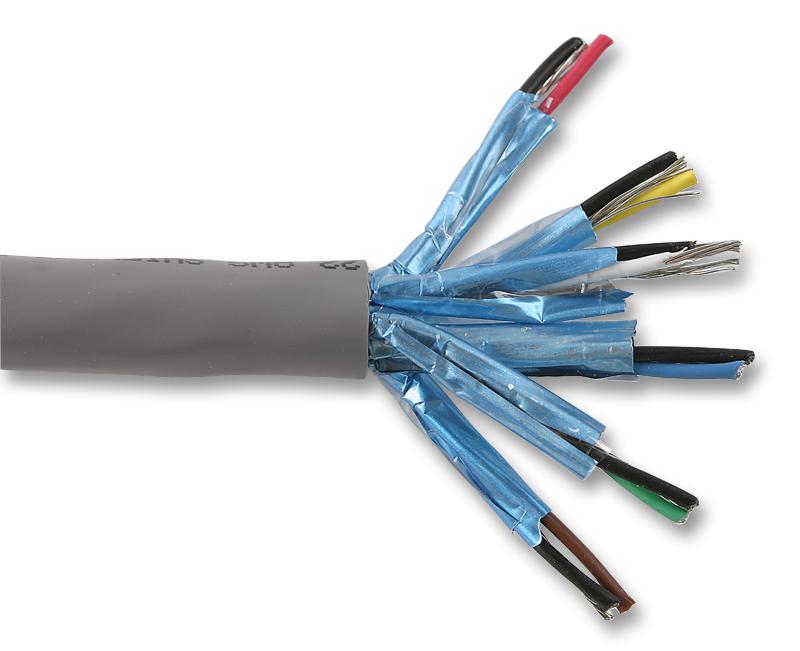

Alpha Wire Multi Pair 350V Individually Foil Shielded Communication and Control Cable

Alpha Wire Multi Pair 350V Individually Foil Shielded Communication and Control Cable
Roll over image to Zoom

Alpha Wire Multi Pair 350V Individually Foil Shielded Communication and Control Cable

SKU: NNC21071X

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

  Product Name Length Price (Per FT.) Action
Alpha Wire 6314 20 AWG 3 Pair 350V Individually Foil Shielded Communication and Control Cable
Product Name

Alpha Wire 6314 20 AWG 3 Pair 350V Individually Foil Shielded Communication and Control Cable

Length
/FT
Price (Per FT.)

$2.27

Available
Min: 1 FT
Max: 1000000 FT
Action

Alpha Wire 6315 20 AWG 6 Pair 350V Individually Foil Shielded Communication and Control Cable
Product Name

Alpha Wire 6315 20 AWG 6 Pair 350V Individually Foil Shielded Communication and Control Cable

Length
/FT
Price (Per FT.)

$7.08

Available
Min: 1 FT
Max: 1000000 FT
Action

Product Information

Specification

Communication and Control 350V Individually Foil Shielded Pairs, Multipair, PP, PE Direct Burial

Operating Temperature:

• -20°C to +80°C

Conductor Color Coding:

• Chart A (page 528)

Materials:

• Stranded tinned copper conductors
• Polypropylene insulation
• Individual aluminum/polyester foil shield, 25% overlap min. Foil facing inward Stranded tinned copper drain wire, 22 AWG (0.35 mm2), 7/30 (7 x 0.25 mm)
• Black polyethylene jacket

Availability:

1000 ft (305 m)
500 ft (152 m)




*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
